Technical data

56 parameters

Identification

Manufacturer
INA
Type
Take-up housing unit
Part number (SKU)
TTUE35-XL#N1
EAN
4012802798579

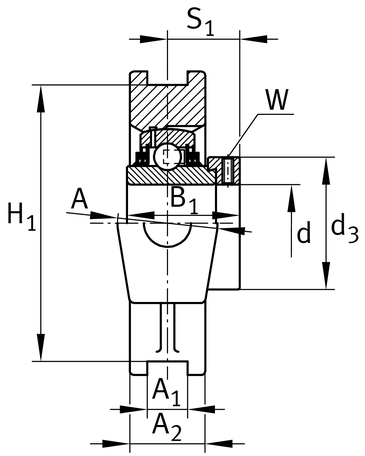

Dimensions

Bore d
35 mm
Outside diameter D
72 mm
Mass
1.73 kg
Full manufacturer specification49 parameters · expand
Basic dynamic load rating
27500.0 N
Basic static load rating
15300.0 N
Bearing designation
GE35-XL-KTT-B
Bearing included in kit
GE35-XL-KTT-B
Bearing inner diameter
35.0 mm
Bearing outside diameter
72.0 mm
Bearing sealed
yes
Bearing seat height
80.0 mm
Bearing sort
RIBB
Bearing split
no
Category
XL
Distance guidance grooves
89.0 mm
Distance of raceway to locking collar
32.5 mm
Distance shaft axis
80.0 mm
Fixing bore
22.0 mm
Height
102.0 mm
Height housing fixing side
64.0 mm
Height recess
36.5 mm
Housing
TUE07
Housing height
102.0 mm
Housing included in kit
TTUE35-XL
Housing length
131.5 mm
Housing material
GG
Housing opening
durchgehend
Housing shape
Loch_seitlich
Housing sort
Take-up
Housing split
no
Housing width
51.3 mm
Length fixed link
13.0 mm
Length guidance groove
63.0 mm
Length total
131.5 mm
Location on shaft
Acc
Locking collar total width
51.3 mm
Lower distance guidance groove tolerance
-0.15 mm
Lubrication connection thread
M6
Material
GG
Max. operating temperature
120.0 °C
Min. operating temperature
-20.0 °C
Number of housing bolts
1
PFAS
no
REACH
REACH compliant with declarable lead proportion
RoHS
RoHS compliant with declarable substances
Sealing type
LIP
Upper distance guidance groove tolerance
0.15 mm
Width guidance groove
12.0 mm
Width guidance groove clearance
H13
Width housing
30.0 mm
Width housing fixing side
40.0 mm
Width recess
18.0 mm

Classification

Manufacturer category
Housings › Radial Insert Ball Bearing Housing Units › Take Up Housing Units
eCl@ss class
23-05-16-03
UNSPSC
31171519

Description

Take-up housing units TTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals

For mounting this bearing

Accessories matching this item. All from our catalogue.

INA

TTUE35-XL

Common designation: TTUE35

Take-up housing unit

⌀35 × 72 mm

od EUR 60.72net

+ VAT 23% = EUR 74.69 gross

To orderdate to be confirmed

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

TTUE35-XL—
EUR 60.72

Cheaper in larger quantities

from 5 pcsEUR 59.51−2%
from 10 pcsEUR 58.90−3%
from 25 pcsEUR 57.69−5%
from 50 pcsEUR 56.47−7%

Brought in to order — we confirm the date after checking with the manufacturer.

Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)TTUE35-XL#N1
EAN4012802798579
Wymiary⌀35 × 72 mm
Masa1.73 kg

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
