Description

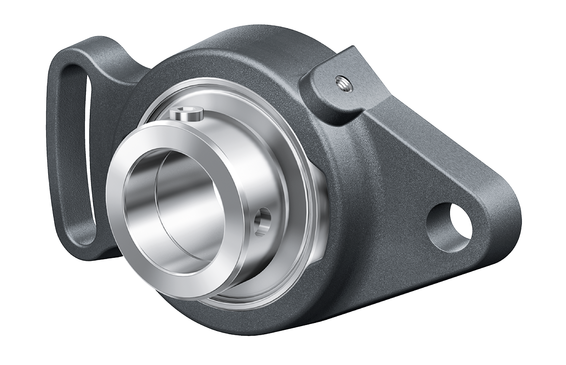

Take-up housing units PHUSE, cast iron and sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals
INA
PHUSE30-XL
Take-up housing unit
⌀30 × 62 mm
od EUR 54.72z VAT
netto EUR 44.49 · cena detaliczna
EUR 57.38−5%
PHUSE30-XL—
EUR 57.38
EUR 54.72Cheaper in larger quantities
| from 10 pcs | EUR 45.71 | −2% |
| from 50 pcs | EUR 44.78 | −4% |
| from 250 pcs | EUR 44.31 | −5% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)PHUSE30-XL#N1
EAN4012802822557
Wymiary⌀30 × 62 mm
Masa2.80 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
55 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- PHUSE30-XL#N1
- EAN
- 4012802822557
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 2.80 kg
Full manufacturer specification48 parameters · expand
- Axial displacement
- 65.0 mm
- Basic dynamic load rating
- 20700.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- GRAE30-XL-NPP-B
- Bearing in kit
- GRAE30-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Bore distance width
- 80.0 mm
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 140.0 mm
- Distance between mounting bolt centerlines (width)
- 80.0 mm
- Distance fixing bore
- 140.0 mm
- Distance fixing bore outside
- 20.0 mm
- Distance shaft axis
- 50.0 mm
- Fixing bore
- 11.5 mm
- Height bearing seat
- 51.5 mm
- Height flange
- 103.0 mm
- Height guidance
- 52.0 mm
- Height housing
- 28.0 mm
- Housing
- HUE06
- Housing (Part 2)
- HUSE07
- Housing height
- 103.0 mm
- Housing in kit
- PHUSE30-XL
- Housing material
- GG-SB
- Housing opening
- durchgehend
- Housing qty bolts
- 4
- Housing shape
- Verschiebbar
- Housing sort
- Take-up
- Housing split
- Nein
- Housing width
- 35.8 mm
- Inner diameter bearing
- 30.0 mm
- Length total
- 187.0 mm
- Load carrying capacity (housing)
- 11300.0 N
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 62.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 88.0 mm
- Thickness of flange
- 4.0 mm
- Thread adjusting screw
- M12
- Width housing
- 22.0 mm
