Technical data

56 parameters

Identification

Manufacturer: INA
Type: Take-up housing unit
Part number (SKU): RTUE35-XL#N1
EAN: 4012802793765

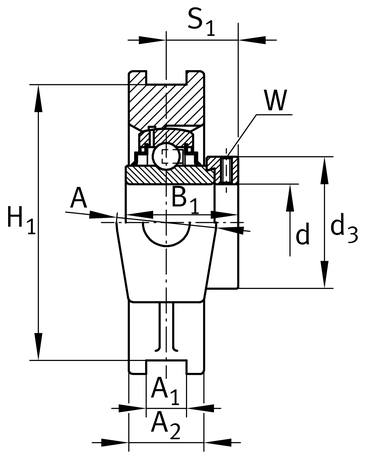

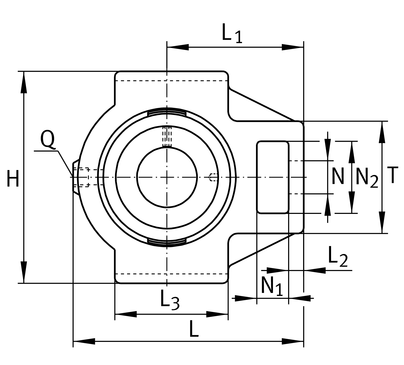

Dimensions

Bore d: 35 mm
Outside diameter D: 72 mm
Mass: 1.77 kg

Full manufacturer specification49 parameters · expand

Basic dynamic load rating: 27500.0 N
Basic static load rating: 15300.0 N
Bearing designation: GE35-XL-KRR-B
Bearing included in kit: GE35-XL-KRR-B
Bearing inner diameter: 35.0 mm
Bearing outside diameter: 72.0 mm
Bearing sealed: yes
Bearing seat height: 80.0 mm
Bearing sort: RIBB
Bearing split: no
Category: XL
Distance guidance grooves: 89.0 mm
Distance of raceway to locking collar: 32.5 mm
Distance shaft axis: 80.0 mm
Fixing bore: 22.0 mm
Height: 102.0 mm
Height housing fixing side: 64.0 mm
Height recess: 36.5 mm
Housing: TUE07
Housing height: 102.0 mm
Housing included in kit: RTUE35-XL
Housing length: 131.5 mm
Housing material: GG
Housing opening: durchgehend
Housing shape: Loch_seitlich
Housing sort: Take-up
Housing split: no
Housing width: 51.3 mm
Length fixed link: 13.0 mm
Length guidance groove: 63.0 mm
Length total: 131.5 mm
Location on shaft: Acc
Locking collar total width: 51.3 mm
Lower distance guidance groove tolerance: -0.15 mm
Lubrication connection thread: M6
Material: GG
Max. operating temperature: 120.0 °C
Min. operating temperature: -20.0 °C
Number of housing bolts: 1
PFAS: no
REACH: REACH compliant with declarable lead proportion
RoHS: RoHS compliant with declarable substances
Sealing type: LIP
Upper distance guidance groove tolerance: 0.15 mm
Width guidance groove: 12.0 mm
Width guidance groove clearance: H13
Width housing: 30.0 mm
Width housing fixing side: 40.0 mm
Width recess: 18.0 mm

Classification

Manufacturer category: Housings › Radial Insert Ball Bearing Housing Units › Take Up Housing Units
eCl@ss class: 23-05-16-03
UNSPSC: 31171519

Description

Take-up housing unit RTUE35-XL enables axial position adjustment along the mounting rails, accommodating a radial insert ball bearing with an eccentric locking collar fitted into a cast iron housing. Bore diameter is 35.0 mm, overall height 102.0 mm, net mass 1.77 kg, and the basic dynamic load rating reaches 27500.0 N. The eccentric locking collar allows quick clamping of the bearing onto the shaft without additional tools, while R seals on both sides restrict ingress of dust and moisture into the bearing interior. The take-up design of the housing suits applications requiring belt or chain tensioning, where the unit slides along the rail to set and maintain the correct span before final fixing.
