Technical data
56 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- PTUE30-XL#N1
- EAN
- 4054372273247

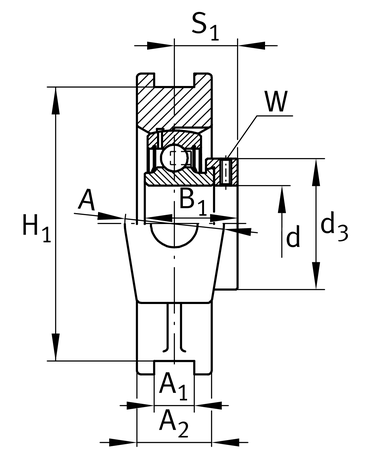

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 1.19 kg
Full manufacturer specification49 parameters · expand
- Basic dynamic load rating
- 20700.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- GRAE30-XL-NPP-B
- Bearing included in kit
- GRAE30-XL-NPP-B
- Bearing inner diameter
- 30.0 mm
- Bearing outside diameter
- 62.0 mm
- Bearing sealed
- yes
- Bearing seat height
- 70.0 mm
- Bearing sort
- RIBB
- Bearing split
- no
- Category
- XL
- Distance guidance grooves
- 89.0 mm
- Distance of raceway to locking collar
- 26.8 mm
- Distance shaft axis
- 70.0 mm
- Fixing bore
- 22.0 mm
- Height
- 102.0 mm
- Height housing fixing side
- 56.0 mm
- Height recess
- 36.5 mm
- Housing
- TUE06
- Housing height
- 102.0 mm
- Housing included in kit
- PTUE30-XL
- Housing length
- 114.5 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing shape
- Loch_seitlich
- Housing sort
- Take-up
- Housing split
- no
- Housing width
- 37.0 mm
- Length fixed link
- 10.0 mm
- Length guidance groove
- 57.0 mm
- Length total
- 114.5 mm
- Location on shaft
- Acc
- Locking collar total width
- 35.8 mm
- Lower distance guidance groove tolerance
- -0.15 mm
- Lubrication connection thread
- M6
- Material
- GG
- Max. operating temperature
- 120.0 °C
- Min. operating temperature
- -20.0 °C
- Number of housing bolts
- 1
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Upper distance guidance groove tolerance
- 0.15 mm
- Width guidance groove
- 12.0 mm
- Width guidance groove clearance
- H13
- Width housing
- 25.0 mm
- Width housing fixing side
- 37.0 mm
- Width recess
- 18.0 mm
Classification
- Manufacturer category
- Housings › Radial Insert Ball Bearing Housing Units › Take Up Housing Units
- eCl@ss class
- 23-05-16-03
- UNSPSC
- 31171519
Description
This bearing housing combines a cast iron housing with a radial insert ball bearing held in place by an eccentric locking collar. Bore diameter is 30.0 mm, overall height 102.0 mm, and net mass 1.19 kg. Basic dynamic load rating is 20700.0 N, indicating the load level the bearing can carry during rotation. The eccentric locking collar allows the inner ring to be fixed to the shaft without additional tools, while the take-up housing design permits the unit to be repositioned along mounting rails to compensate for shaft movement. P seals protect the bearing interior from dust and moisture, supporting stable operation between maintenance intervals. PTUE30-XL suits applications where shaft position needs periodic adjustment together with sealed, low-maintenance bearing operation.
For mounting this bearing
Accessories matching this item. All from our catalogue.
PTUE30-XL
Common designation: PTUE30
Take-up housing unit
⌀30 × 62 mm
od EUR 28.80net
+ VAT 23% = EUR 35.42 gross
Cheaper in larger quantities
| from 5 pcs | EUR 28.23 | −2% |
| from 10 pcs | EUR 27.94 | −3% |
| from 25 pcs | EUR 27.36 | −5% |
| from 50 pcs | EUR 26.79 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
