Description

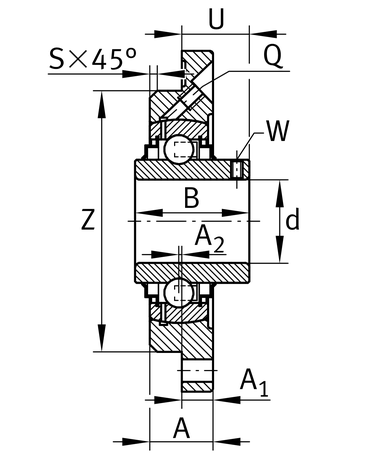

Housing units RMEY, four-bolt flanged housing units, cast iron, centring spigot, grub screws in inner ring, R seals
INA
RMEY30-XL-N
Flanged housing unit
⌀30 × 62 × 38.1 mm
od EUR 33.57z VAT
netto EUR 27.29 · cena detaliczna
EUR 38.55−13%
RMEY30-XL-N—
EUR 38.55
EUR 33.57Cheaper in larger quantities
| from 10 pcs | EUR 30.72 | −2% |
| from 50 pcs | EUR 30.09 | −4% |
| from 250 pcs | EUR 29.78 | −5% |
Last few (15)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)RMEY30-XL-N#N1
EAN4012802803433
Wymiary⌀30 × 62 × 38.1 mm
Masa960 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
55 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RMEY30-XL-N#N1
- EAN
- 4012802803433
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Width B
- 38.1 mm
- Mass
- 960 g
Load ratings and operation
- Dynamic load rating C
- 20700 N
- Static load rating C₀
- 11300 N
Full manufacturer specification45 parameters · expand
- Basic dynamic load rating
- 20700.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- GYE30-XL-KRR-B
- Bearing in kit
- GYE30-XL-KRR-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Chamfer width
- 2.0 mm
- Connection thread for lubrication
- M6
- Diameter spigot
- 80.0 mm
- Diameter spigot clearance
- h8
- Distance between mounting bolt centerlines (length)
- 100.0 mm
- Distance raceway
- 2.0 mm
- Fatigue load limit, radial
- 480.0 N
- Fixing bore
- 11.5 mm
- Groove
- N
- Height bearing seat
- 62.5 mm
- Height flange
- 125.0 mm
- Height housing
- 20.5 mm
- Housing
- ME06
- Housing height
- 125.0 mm
- Housing in kit
- RMEY30-XL-N
- Housing length
- 125.0 mm
- Housing material
- GG
- Housing opening
- combi
- Housing qty bolts
- 4
- Housing shape
- Rund
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 38.1 mm
- Inner diameter bearing
- 30.0 mm
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- GG
- Number of housings
- 1.0
- Number of screwing holes
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 62.0 mm
- PFAS
- nein
- Pitch circle diameter (holes)
- 100.0 mm
- Protecting cap
- KASK06
- Sealing type
- LIP
- Thickness of flange
- 9.5 mm
- Total height unit
- 20.2 mm
