Technical data
49 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- FLCTEY30-XL#N1
- EAN
- 4012802807714
Dimensions

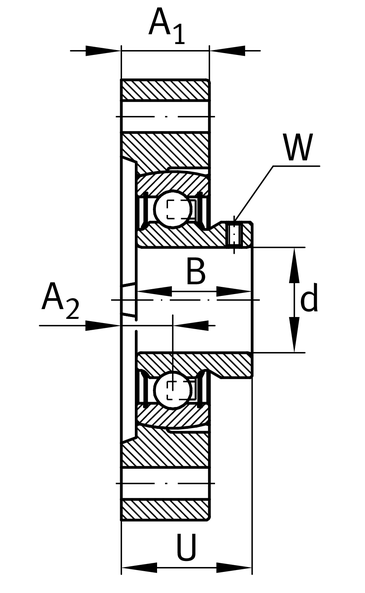

- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Width B
- 30 mm
- Mass
- 680 g
Load ratings and operation
- Dynamic load rating C
- 19500 N
- Static load rating C₀
- 11300 N
Full manufacturer specification39 parameters · expand
- Basic dynamic load rating
- 19500.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- AY30-XL-NPP-B
- Bearing included in kit
- AY30-XL-NPP-B
- Bearing inner diameter
- 30.0 mm
- Bearing outside diameter
- 62.0 mm
- Bearing sealed
- yes
- Bearing sort
- RIBB
- Bearing split
- no
- Category
- XL

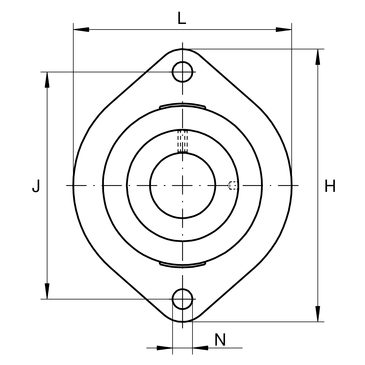

- Distance between mounting bolt centerlines (length)
- 90.5 mm
- Fatigue load limit, radial
- 480.0 N
- Fixing bore
- 11.5 mm
- Fixing bore spacing
- 90.5 mm
- Flange width
- 84.0 mm
- Height flange
- 112.5 mm
- Housing
- GEHLCTE06-GG
- Housing height
- 112.5 mm
- Housing included in kit
- FLCTEY30-XL
- Housing length
- 84.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- no
- Housing width
- 32.4 mm
- Location on shaft
- Acc
- Material
- GG
- Max. operating temperature
- 100.0 °C
- Min. operating temperature
- -20.0 °C
- Number of housing bolts
- 2
- Number of screwing holes
- 2.0
- PFAS
- no
- Raceway distance
- 11.4 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Thickness of flange
- 22.5 mm
- Total height unit
- 32.4 mm
Classification
- Manufacturer category
- Housings › Radial Insert Ball Bearing Housing Units › Flanged Housings
- eCl@ss class
- 23-05-16-02
- UNSPSC
- 31171501
Description
This bearing housing carries a bore diameter of 30.0 mm and a width of 30.0 mm, with a net mass of 0.68 kg. The cast iron flanged body is fixed with two bolts, and the insert ring is secured to the shaft by grub screws. Basic dynamic load rating is 19500.0 N. The unit is fitted with P seals and has no relubrication facility, so the grease fill installed at assembly must last for the operating period without top-up. The grub screw fixing suits shafts where axial and rotational fixing through set screws is sufficient, and the two-bolt flange allows mounting where housing footprint needs to stay compact along one mounting line.
