Description
Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides
INA
GYE35-XL-KRR-B
Radial insert ball bearing
⌀35 × 72 × 42.9 mm
od EUR 18.76z VAT
netto EUR 15.25 · cena detaliczna
EUR 22.07−15%
GYE35-XL-KRR-B—
EUR 22.07
EUR 18.76Cheaper in larger quantities
| from 10 pcs | EUR 17.58 | −2% |
| from 50 pcs | EUR 17.22 | −4% |
| from 250 pcs | EUR 17.04 | −5% |
In stock (39 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)GYE35-XL-KRR-B#N1
EAN4012802782837
Wymiary⌀35 × 72 × 42.9 mm
Masa440 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- GYE35-XL-KRR-B#N1
- EAN
- 4012802782837

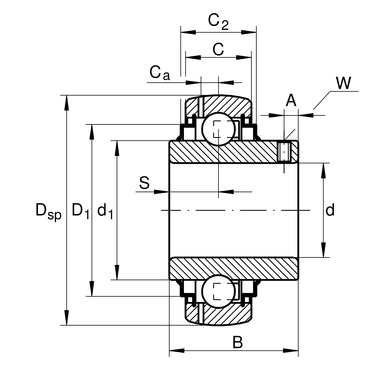

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Width B
- 42.9 mm
- Mass
- 440 g
Load ratings and operation
- Dynamic load rating C
- 25500 N
- Static load rating C₀
- 15300 N
- Sealing
- KRR
Full manufacturer specification16 parameters · expand
- Calculation factor
- 13.8
- Distance raceway
- 17.5 mm
- Distance thread
- 6.0 mm
- Distance to lubrication hole
- 5.6 mm
- Fatigue load limit, radial
- 650.0 N
- Marketing category
- XL
- Outside diameter seal
- 60.3 mm
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter inner ring
- 46.8 mm
- RoHS
- RoHS compliant
- Sealing
- KRR
- Sealing total width
- 22.5 mm
- Shape of outer surface
- B
- Width of flats
- 3.0 mm
- Width, outer ring
- 19.0 mm
