Technical data

26 parameters

Identification

Manufacturer
INA
Type
Radial insert ball bearing
Part number (SKU)
GRAE30-XL-NPP-B#N1
EAN
4012802800814

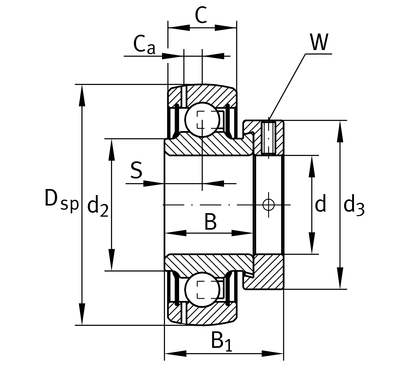

Dimensions

Bore d
30 mm
Outside diameter D
62 mm
Width B
23.8 mm
Mass
320 g

Load ratings and operation

Dynamic load rating C
19500 N
Static load rating C₀
11300 N
Sealing
NPP
Full manufacturer specification15 parameters · expand
Calculation factor
13.8
Category
XL
Distance to lubrication hole
4.7 mm
Fatigue load limit, radial
480.0 N
Locking collar total width
35.8 mm
Outer ring width
18.0 mm
Outside diameter locking collar/locknut
44.0 mm
PFAS
no
Raceway distance
9.0 mm
REACH
REACH compliant
Rib diameter sealing inner ring
37.4 mm
RoHS
RoHS compliant
Sealing
NPP
Shape of outer surface
B
Width of flats
4.0 mm

Classification

Manufacturer category
Rolling and Plain Bearings › Ball Bearings › Insert Ball Bearings and Belt Tension Pulleys › Insert Ball Bearings
eCl@ss class
23-05-08-02
UNSPSC
31171504

Description

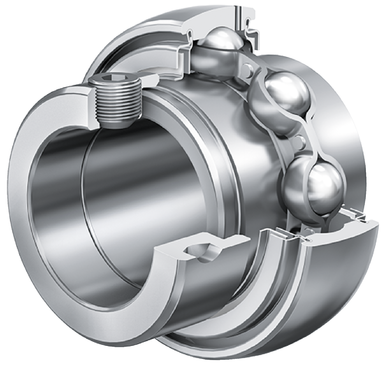

This insert ball bearing carries a spherical outer ring surface, allowing the inner ring with shaft to self-align within the housing during operation. The bore diameter is 30.0 mm, outside diameter 62.0 mm, and width 23.8 mm, with a net mass of 0.32 kg. Sealing is executed as NPP, protecting the raceway and rolling elements from dust and moisture ingress on both sides. The spherical outer surface compensates for shaft misalignment and mounting inaccuracies, making the bearing suitable for applications where precise shaft alignment cannot be guaranteed. The NPP sealing arrangement retains internal lubrication and reduces the need for frequent relubrication, supporting continuous operation under standard duty conditions.

The same bearing from other manufacturers (6 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

GRAE30-XL-NPP-B

original — this page

equivalent designation

ASAHI

KH206+ER

FAFNIR

GRAE30NPPB

FAFNIR

GRAE30RRB

conditionally interchangeable

These items are conditionally interchangeable — check the design before ordering.

RHP

1230-30ECG

SNR

11206CEES

SNR

1230-30ECG

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

For mounting this bearing

Accessories matching this item. All from our catalogue.

INA

GRAE30-XL-NPP-B

Common designation: GRAE30 NPP B

Radial insert ball bearing

⌀30 × 62 × 23.8 mm

od EUR 14.36net

+ VAT 23% = EUR 17.66 gross

In stock (391 pcs)dispatch within 24 h
GRAE30-XL-NPP-B—
EUR 14.36

Cheaper in larger quantities

from 5 pcsEUR 14.07−2%
from 10 pcsEUR 13.93−3%
from 25 pcsEUR 13.64−5%
from 50 pcsEUR 13.35−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)GRAE30-XL-NPP-B#N1
EAN4012802800814
Wymiary⌀30 × 62 × 23.8 mm
Masa320 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
