Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE100-LO#N1
- EAN
- 4012802534030

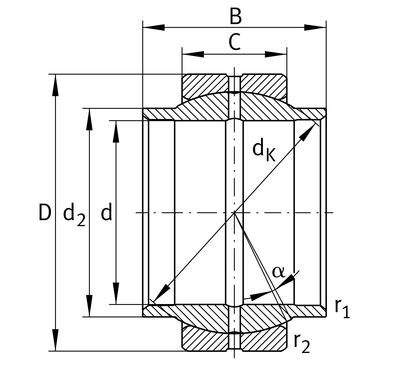

Dimensions
- Bore d
- 100 mm
- Outside diameter D
- 150 mm
- Mass
- 4.89 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 790000 N
- Static load rating C₀
- 3040000 N
- Sealing
- without
Full manufacturer specification28 parameters · expand
- Ball diameter
- 130.0 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, upper tolerance
- 0.035 mm
- Coating
- Durotect M
- Connection measure Inner ring
- 113.0 mm
- Edge Spacing
- 1.0 mm

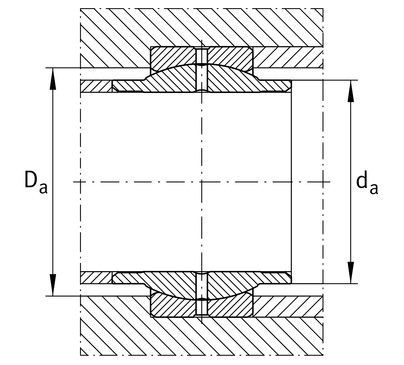

- Housing Connection Diameter
- 123.0 mm
- Inner ring width
- 100.0 mm
- Maintenance
- Maintenance required
- Material
- Steel
- Max. operating temperature
- 200.0 °C
- Min. operating temperature
- -60.0 °C
- Outer ring width
- 55.0 mm
- Outside diameter, lower tolerance
- -0.018 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- no
- Radial Clearance
- 0,085 - 0,165
- Radial clearance, maximum
- 0.165 mm
- Radial clearance, minimum
- 0.085 mm
- Radial internal clearance
- CN (group N)
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- without
- Tilt angle
- 4.0 °
- Width inner ring, lower tolerance
- -0.35 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width outer ring, lower tolerance
- -0.5 mm
- Width outer ring, upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Plain Bearings › Spherical Plain Bearings › Spherical Plain Bearings, maintenance required
- eCl@ss class
- 23-05-01-06
- UNSPSC
- 31171515
Description
This plain bearing accommodates radial loads while allowing angular misalignment between shaft and housing, thanks to its spherical sliding contact surface. The design is a steel/steel radial spherical plain bearing built to DIN ISO 12240-1, dimension series W, with cylindrical extensions on the inner ring and an open design. Radial internal clearance is CN (Group N), and the net mass is 4.888 kg. The bearing has no seal, so the mounting location must provide external protection against contamination and moisture ingress, and relubrication has to be planned as part of regular maintenance. The steel/steel sliding pair and open design suit applications where angular misalignment must be compensated under high load and demanding lifetime requirements. Radial internal clearance CN (Group N) corresponds to normal clearance, suitable where no special fit conditions are specified.
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
GE100-LO
original — this page
conditionally interchangeable
These items are conditionally interchangeable — check the design before ordering.
HUNGER
GE100BN-A
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
GE100-LO
Spherical plain bearing
⌀100 × 150 mm
od EUR 323.68net
+ VAT 23% = EUR 398.13 gross
Cheaper in larger quantities
| from 5 pcs | EUR 313.97 | −3% |
| from 10 pcs | EUR 310.74 | −4% |
| from 25 pcs | EUR 304.26 | −6% |
| from 50 pcs | EUR 297.79 | −8% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
