Description
Four point contact bearing QJ3..-XL-MPA, X-life, solid brass cage
FAG
QJ314-XL-MPA
Four-point contact bearing
⌀70 × 150 × 35 mm
od EUR 184.11z VAT
netto EUR 149.68 · cena detaliczna
EUR 186.71−1%
QJ314-XL-MPA—
EUR 186.71
EUR 184.11Cheaper in larger quantities
| from 10 pcs | EUR 149.68 | −1% |
| from 25 pcs | EUR 142.69 | −6% |
| from 50 pcs | EUR 145.73 | −4% |
Last few (2)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)QJ314-XL-MPA#N1
EAN4012801237888
Wymiary⌀70 × 150 × 35 mm
Masa3.14 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
32 parametersIdentification
- Manufacturer
- FAG
- Type
- Four-point contact bearing
- Part number (SKU)
- QJ314-XL-MPA#N1
- EAN
- 4012801237888
- Cage
- MPA
- Tolerance class
- PN

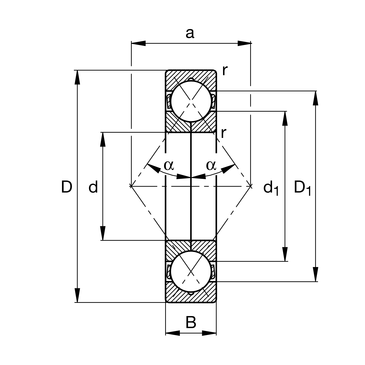

Dimensions
- Bore d
- 70 mm
- Outside diameter D
- 150 mm
- Width B
- 35 mm
- Mass
- 3.14 kg
Load ratings and operation
- Dynamic load rating C
- 198000 N
- Static load rating C₀
- 165000 N
- Limiting speed
- 8900 1/min
Full manufacturer specification19 parameters · expand
- Axial internal clearance
- CN
- Cage
- MPA
- Contact angle
- 35.0 °
- Dimensional / heat stabilization
- S0
- Distance between the apexes of the pressure cones
- 77.0 mm
- Fatigue load limit, radial
- 11800.0 N
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 138.0 mm
- Maximum fillet radius
- 2.1 mm
- Minimum chamfer dimension
- 2.1 mm
- Minimum diameter shaft shoulder
- 82.0 mm
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 4200.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Shoulder diameter inner ring
- 97.7 mm
- Shoulder diameter outer ring
- 123.6 mm
