Description

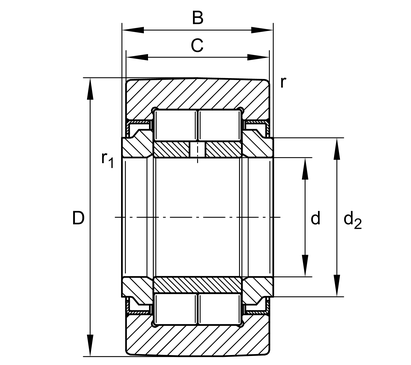

Yoke type track rollers NUTR..-A, double row cylindrical roller bearings with particularly thick-walled outer ring, full complement cylindrical roller set and an inner ring, the outer ring is guided axially by the rolling elements, labyrinth seals on both sides
INA
NUTR1747-A
Yoke type track roller
⌀17 × 47 mm
od EUR 42.24z VAT
netto EUR 34.34 · cena detaliczna
EUR 46.84−10%
NUTR1747-A—
EUR 46.84
EUR 42.24Cheaper in larger quantities
| from 10 pcs | EUR 37.32 | −2% |
| from 50 pcs | EUR 36.56 | −4% |
| from 75 pcs | EUR 35.42 | −7% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)NUTR1747-A#N1
EAN4012802419498
Wymiary⌀17 × 47 mm
Masa221 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- NUTR1747-A#N1
- EAN
- 4012802419498
Dimensions
- Bore d
- 17 mm
- Outside diameter D
- 47 mm
- Mass
- 221 g
Load ratings and operation
- Dynamic load rating C
- 22000 N
- Static load rating C₀
- 30500 N
- Sealing
- 2LB
Full manufacturer specification14 parameters · expand
- Fatigue load limit, radial
- 3950.0 N
- Minimum chamfer dimension
- 1.0 mm
- Outer ring profile
- IOP
- Permissible dynamic load outer ring, radial
- 30500.0 N
- Permissible static load, radial
- 30500.0 N
- PFAS
- nein
- REACH
- REACH conform
- Relubrication
- IR
- RoHS
- RoHS compliant
- Sealing
- 2LB
- Speed on permanent grease lubrication
- 5500.0 1/min
- Stop diameter of thrust washer
- 22.0 mm
- Width of the bearing
- 21.0 mm
- Width, outer ring
- 20.0 mm
