Technical data

23 parameters

Identification

Manufacturer
INA
Type
Yoke type track roller
Part number (SKU)
LR5003-2RS#N5
EAN
4012802782110

Dimensions

Bore d
17 mm
Outside diameter D
40 mm
Mass
70 g

Load ratings and operation

Sealing
2RS
Full manufacturer specification15 parameters · expand
Diameter of thrust washer
21.6 mm
Effective dynamic load rating, radial
7800.0 N
Effective fatigue limit load, radial
275.0 N
Effective static load rating, radial
5400.0 N
Height
14.0 mm
Minimum chamfer
0.3 mm
Outer ring profile
R500
Permissible dynamic load, radial
5400.0 N
PFAS
no
Radius of outer ring outside profile
500.0 mm
REACH
REACH compliant
Relubrication
IR
RoHS
RoHS compliant
Sealing
2RS
Speed on permanent grease lubrication
6000.0 1/min

Classification

Manufacturer category
Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Track Rollers
eCl@ss class
23-05-15-90
UNSPSC
31162701

Description

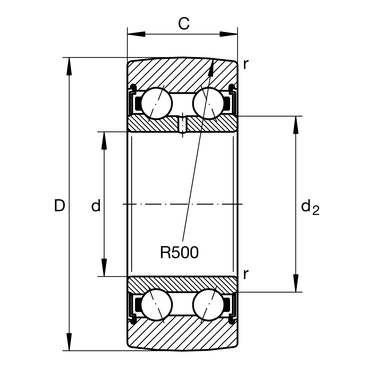

LR5003-2RS is a double row, self-retaining angular contact ball bearing with a particularly thick-walled outer ring, a ball and cage assembly and an inner ring. Axial guidance of the outer ring is provided directly by the balls, without a separate guiding flange. Bore diameter 17.0 mm, outside diameter 40.0 mm, height 14.0 mm, mass 0.07 kg. Both sides carry lip seals with combined axial and radial sealing action (2RS), retaining grease and keeping out dirt during continuous rolling contact. The self-retaining ball and cage assembly lets the bearing be mounted straight onto a shaft, while the thick-walled outer ring and ball-guided axial support suit it for use as a running track roller carrying loads on its outer surface.

INA

LR5003-2RS

Yoke type track roller

⌀17 × 40 mm

od EUR 23.23net

+ VAT 23% = EUR 28.57 gross

Last few (1)dispatch within 24 h
LR5003-2RS—
EUR 23.23

Cheaper in larger quantities

from 5 pcsEUR 22.77−2%
from 10 pcsEUR 22.54−3%
from 25 pcsEUR 22.07−5%
from 50 pcsEUR 21.61−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)LR5003-2RS#N5
EAN4012802782110
Wymiary⌀17 × 40 mm
Opakowanie5 szt.
Masa70 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
