Technical data
33 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- N1026-K-M1-SP#N1
- EAN
- 4012801754941
- Cage
- M1
- Tolerance class
- SP
Dimensions
- Bore d
- 130 mm
- Outside diameter D
- 200 mm
- Width B
- 33 mm
- Mass
- 3.58 kg
- Radial clearance
- C1 (Group 1)
Load ratings and operation
- Dynamic load rating C
- 179000 N
- Static load rating C₀
- 250000 N
Full manufacturer specification20 parameters · expand

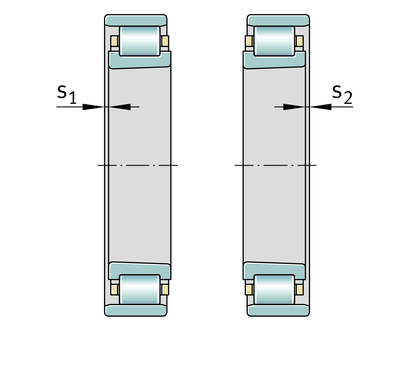

- Axial displacement
- 4.2 mm
- Bore design
- K
- Cage
- M1

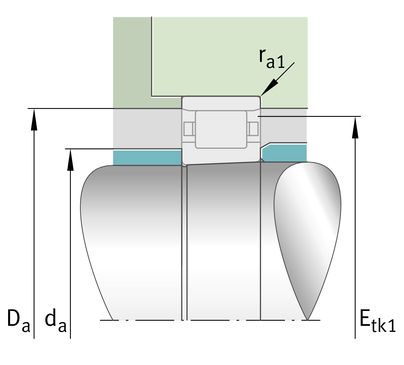

- Diameter of housing shoulder
- 184.1 mm
- Diameter of housing shoulder tolerance
- H12
- Diameter shaft shoulder tolerance
- h12
- Fatigue load limit, radial
- 32000.0 N
- Injection pitch diameter min
- 177.8 mm
- Limiting speed for grease lubrication
- 4800.0 1/min
- Limiting speed for oil lubrication
- 5600.0 1/min
- Max. operating temperature
- 150.0 °C
- Maximum recess radius
- 1.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 1.1 mm
- Number of rows
- 1
- Outer ring raceway diameter
- 182.0 mm
- PFAS
- no
- Radial internal clearance
- C1 (Group 1)
- REACH
- REACH compliant with declarable lead proportion
- Shaft shoulder diameter
- 148.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Radial Super Precision Bearings › Cylindrical Roller Bearings For Main Spindles
- eCl@ss class
- 23-05-09-01
- UNSPSC
- 31171505
Description
Super precision cylindrical roller bearings N10..-K-M1-SP, non-locating bearing, with tapered bore, taper 1:12, separable, with cage
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
FAG
N1026-K-M1-SP
original — this page
conditionally interchangeable
These items are conditionally interchangeable — check the design before ordering.
NTN
N1026HSKC1NAP5
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
N1026-K-M1-SP
Cylindrical roller bearing
⌀130 × 200 × 33 mm
od EUR 1,055.88net
+ VAT 23% = EUR 1,298.73 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 1,025.63 | −3% |
| from 10 pcs | EUR 1,015.06 | −4% |
| from 25 pcs | EUR 993.91 | −6% |
| from 50 pcs | EUR 972.77 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
