Technical data
41 parametersIdentification
- Manufacturer
- FAG
- Type
- Tapered roller bearing
- Part number (SKU)
- 32212-A-P5#N1>1
- EAN
- 4064327712509
- Cage
- Standard
- Tolerance class
- P5

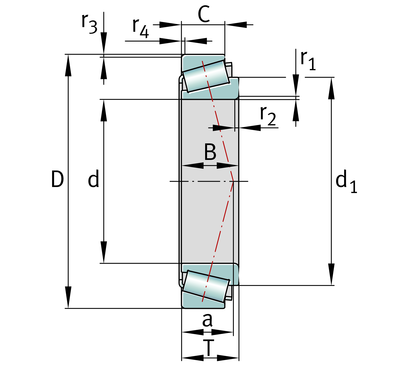

Dimensions
- Bore d
- 60 mm
- Outside diameter D
- 110 mm
- Mass
- 1.16 kg
Load ratings and operation
- Dynamic load rating C
- 133000 N
- Static load rating C₀
- 169000 N
- Limiting speed
- 6600 1/min
Full manufacturer specification29 parameters · expand
- Cage
- Standard
- Comparative designation to ISO 10317 and ISO 355
- T3EC060
- Distance between pressure cone apexes
- 24.0 mm
- Dynamic axial load factor
- 1.48
- Fatigue load limit, radial
- 20800.0 N
- Guidance rib diameter of inner ring
- 83.7 mm
- Internal design
- Standard
- Limiting value of Fa/Fr for factors X and Y
- 0.4
- Max. operating temperature
- 120.0 °C

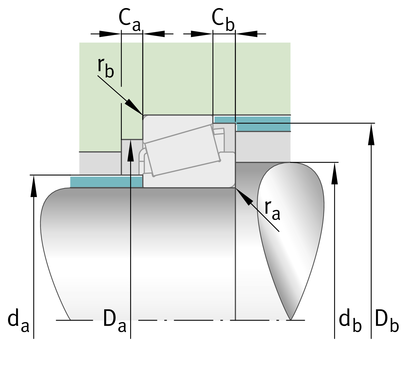

- Maximum housing fillet radius
- 1.5 mm
- Maximum housing shoulder diameter
- 101.0 mm
- Maximum shaft fillet radius
- 2.0 mm
- Maximum shaft shoulder diameter
- 69.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum axial space
- 5.5 mm
- Minimum chamfer dimension of inner ring back face
- 2.0 mm
- Minimum chamfer dimension of outer ring back face
- 1.5 mm
- Minimum housing shoulder diameter
- 104.0 mm
- Minimum shaft shoulder diameter
- 69.0 mm
- Number of rows
- 1
- Outer ring width
- 24.0 mm
- PFAS
- no
- Quality level
- Standard
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Static axial load factor
- 0.81
- Thermal speed rating
- 3900.0 1/min
- Width, inner ring
- 28.0 mm
- Width, total
- 29.75 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Tapered Roller Bearings
- eCl@ss class
- 23-05-09-10
- UNSPSC
- 31171516
Description
Tapered roller bearings 322, main dimensions acc. to DIN 720, separable
FAG
32212-A-P5
Tapered roller bearing
⌀60 × 110 mm
od EUR 64.31net
+ VAT 23% = EUR 79.10 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
32212-A-P5—
EUR 64.31
Cheaper in larger quantities
| from 5 pcs | EUR 63.02 | −2% |
| from 10 pcs | EUR 62.38 | −3% |
| from 25 pcs | EUR 61.09 | −5% |
| from 50 pcs | EUR 59.80 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)32212-A-P5#N1>1
EAN4064327712509
Wymiary⌀60 × 110 mm
Masa1.16 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
