Description
Angular contact ball bearing 32..-BD-XL-2Z, double row, X-life, shields, steel sheet metal cage
FAG
3206-BD-XL-2Z
Angular contact ball bearing
⌀30 × 62 × 23.8 mm
od EUR 43.71z VAT
netto EUR 35.54 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
3206-BD-XL-2Z—
EUR 43.71
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)3206-BD-XL-2Z#N1>1
EAN4064327676733
Wymiary⌀30 × 62 × 23.8 mm
Masa297 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
37 parametersIdentification
- Manufacturer
- FAG
- Type
- Angular contact ball bearing
- Part number (SKU)
- 3206-BD-XL-2Z#N1>1
- EAN
- 4064327676733
- Cage
- JH
- Tolerance class
- P6

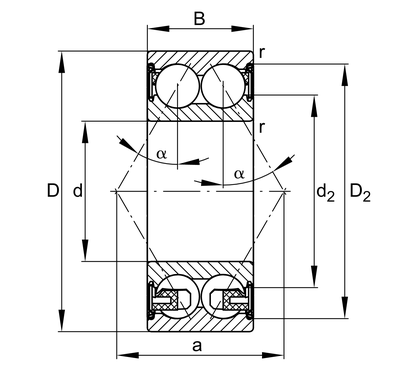

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Width B
- 23.8 mm
- Mass
- 297 g
Load ratings and operation
- Dynamic load rating C
- 31000 N
- Static load rating C₀
- 22200 N
- Limiting speed
- 9000 1/min
Full manufacturer specification24 parameters · expand
- Axial internal clearance
- CN
- Cage
- JH
- Caliber diameter outer ring
- 55.84 mm
- Caliber diamter inner ring
- 40.33 mm
- Contact angle
- 30.0 °
- Design variant
- D
- Dimensional / heat stabilization
- SN
- Distance between the apexes of the pressure cones
- 36.4 mm
- Fatigue load limit, radial
- 1540.0 N
- Lubricant
- GA13
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 56.4 mm
- Maximum fillet radius
- 1.0 mm
- Minimum chamfer dimension
- 1.0 mm
- Minimum diameter shaft shoulder
- 35.6 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 11100.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Shoulder diameter inner ring
- 42.2 mm
- Shoulder diameter outer ring
- 53.3 mm
- Type of Sealing
- 2Z
