Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- STO8-X-TV#N1>1
- EAN
- 4012802720396
- Cage
- TV
Dimensions
- Bore d
- 8 mm
- Outside diameter D
- 24 mm
- Mass
- 27.18 g
Load ratings and operation
- Dynamic load rating C
- 4200 N
- Static load rating C₀
- 5600 N
- Sealing
- without
Full manufacturer specification15 parameters · expand
- Cage
- TV
- Fatigue load limit, radial
- 800.0 N
- Inner ring raceway diameter
- 12.0 mm
- Minimum chamfer
- 0.3 mm
- Outer ring profile
- X
- Outer ring raceway diameter
- 15.0 mm
- Outer ring width
- 9.8 mm
- PFAS
- no
- Radius of outer ring outside profile
- 500.0 mm
- REACH
- REACH compliant
- Relubrication
- IR
- RoHS
- RoHS compliant
- Sealing
- without
- Speed on permanent grease lubrication
- 8000.0 1/min
- Width, inner ring
- 10.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Yoke Type Track Rollers
- eCl@ss class
- 23-05-15-01
- UNSPSC
- 31171512
Description

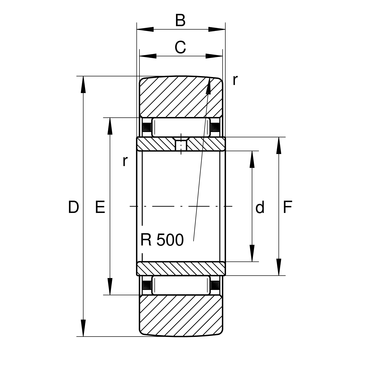

Yoke type track rollers STO.., single row needle roller bearings with particularly thick-walled outer ring, needle roller and cage assembly and an inner ring, without axial guidance of the outer ring, open, inner ring, outer ring and needle roller and cage assembly can be mounted separately
STO8-X-TV
Yoke type track roller
⌀8 × 24 mm
od EUR 19.26net
+ VAT 23% = EUR 23.69 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 18.88 | −2% |
| from 10 pcs | EUR 18.69 | −3% |
| from 25 pcs | EUR 18.30 | −5% |
| from 50 pcs | EUR 17.92 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
