Technical data

24 parameters

Identification

Manufacturer
INA
Type
Yoke type track roller
Part number (SKU)
NATR10-X-PP-A#N1
EAN
4012802427806

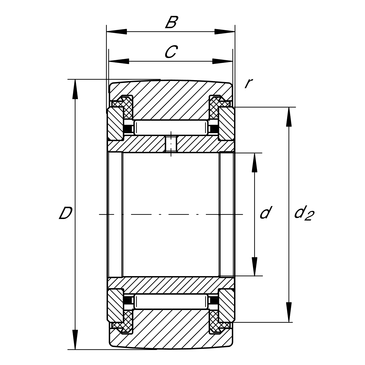

Dimensions

Bore d
10 mm
Outside diameter D
30 mm
Mass
59.911 g

Load ratings and operation

Dynamic load rating C
6800 N
Static load rating C₀
8700 N
Sealing
PP
Full manufacturer specification14 parameters · expand
Bearing width
15.0 mm
Fatigue load limit, radial
1240.0 N
Minimum chamfer
0.6 mm
Outer ring profile
X
Outer ring width
14.0 mm
Outside diameter of thrust washer
23.0 mm
Permissible dynamic load outer ring, radial
8700.0 N
Permissible static load, radial
8700.0 N
PFAS
no
REACH
REACH compliant
Relubrication
IR
RoHS
RoHS compliant
Sealing
PP
Speed on permanent grease lubrication
5500.0 1/min

Classification

Manufacturer category
Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Yoke Type Track Rollers
eCl@ss class
23-05-15-01
UNSPSC
31171512

Description

This needle roller bearing is a yoke type track roller featuring a particularly thick-walled outer ring, a needle roller and cage assembly, and an inner ring. Bore diameter is 10.0 mm, outside diameter 30.0 mm, net mass 59.911 g. Axial guidance of the outer ring is provided by plastic axial plain washers together with contact washers, and the sealing type is PP. Three-stage sealing, formed by plastic axial plain washers on both sides, restricts contamination ingress while the roller runs directly on a track or cam surface. The thick-walled outer ring gives the assembly the section strength needed to act as the running surface itself, with axial location built into the bearing rather than relying on separate retaining parts.

INA

NATR10-X-PP-A

Yoke type track roller

⌀10 × 30 mm

od EUR 25.95net

+ VAT 23% = EUR 31.92 gross

Last few (12)dispatch within 24 h
NATR10-X-PP-A—
EUR 25.95

Cheaper in larger quantities

from 5 pcsEUR 25.43−2%
from 10 pcsEUR 25.17−3%
from 25 pcsEUR 24.65−5%
from 50 pcsEUR 24.14−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)NATR10-X-PP-A#N1
EAN4012802427806
Wymiary⌀10 × 30 mm
Masa59.911 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)
