Technical data

34 parameters

Identification

Manufacturer
INA
Type

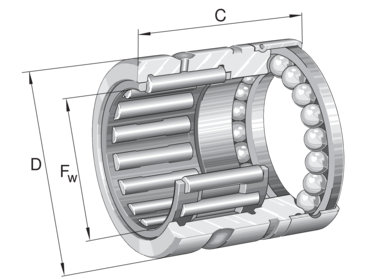

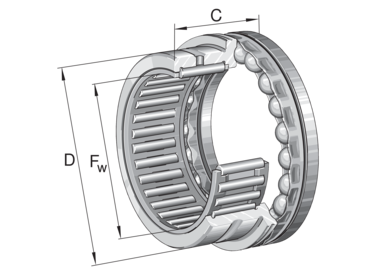

Needle roller/axial ball bearing
Part number (SKU)
NX10-XL#N5
EAN
4012802735697
Cage
Standard

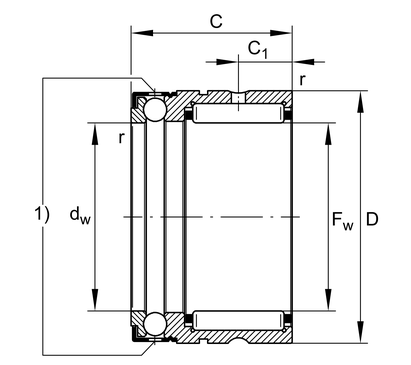

Dimensions

Bore d
10 mm
Outside diameter D
19 mm
Mass
24.85 g

Load ratings and operation

Dynamic load rating C
5000 N
Static load rating C₀
3700 N
Limiting speed
11000 1/min
Sealing
without
Full manufacturer specification22 parameters · expand
Basic dynamic load rating, axial
4600.0 N
Basic static load rating, axial
7200.0 N
Bore diameter of shaft washer
10.0 mm
Cage
Standard
Category
XL
Connection diameter snap ring
21.9 mm
Connection width with snap ring
10.0 mm
Distance to lubrication hole
4.7 mm
Fatigue load limit, axial
330.0 N
Fatigue load limit, radial
730.0 N
Height
18.0 mm
Max. operating temperature
120.0 °C
Maximum recess radius
0.3 mm
Min. operating temperature
-30.0 °C
Minimum chamfer
0.3 mm

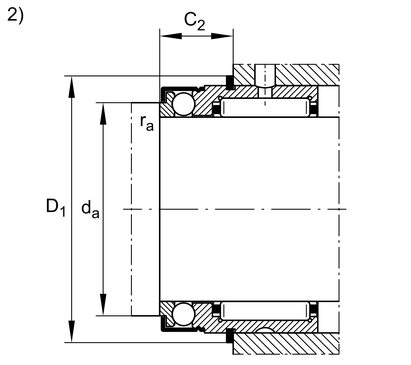

Mounting dimension shaft shoulder
14.6 mm
PFAS
no
REACH
REACH compliant
RoHS
RoHS compliant
Sealing
without
Snap ring
WR19, SW19
Suitable inner rings IR
IR6X10X10-IS1-XL

Classification

Manufacturer category
Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Needle Roller/Axial Ball Bearings
eCl@ss class
23-05-12-02
UNSPSC
31171512

Description

Combines needle roller and axial ball elements in a single unit, carrying radial load and axial load in one direction within one housing bore. Bore diameter is 10.0 mm, outside diameter 19.0 mm, height 18.0 mm, net mass 24.85 g, and the limiting speed reaches 11000 1/min. The cage is of standard design. The bearing has no sealing, so oil lubrication is required to reach the rated limiting speed and to protect the raceways and rolling elements from contamination. Combined radial and single-direction axial loading in a compact axial height suits applications where both load types occur along the same shaft section without needing separate radial and thrust bearings.

The same bearing from other manufacturers (1 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

NX10-XL

original — this page

equivalent designation

SKF

NX10

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

INA

NX10-XL

Common designation: NX10

Needle roller/axial ball bearing

⌀10 × 19 mm

od EUR 21.07net

+ VAT 23% = EUR 25.92 gross

Last few (2)dispatch within 24 h
NX10-XL—
EUR 21.07

Cheaper in larger quantities

from 5 pcsEUR 20.63−2%
from 10 pcsEUR 20.42−3%
from 25 pcsEUR 20.00−5%
from 50 pcsEUR 19.58−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)NX10-XL#N5
EAN4012802735697
Wymiary⌀10 × 19 mm
Opakowanie5 szt.
Masa24.85 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.

Need fitting, lubrication or a vibration check?
