Technical data

33 parameters

Identification

Manufacturer
INA
Type
Needle roller/axial ball bearing
Part number (SKU)
NKX12-Z-XL#N1
EAN
4012802702934
Cage
Standard

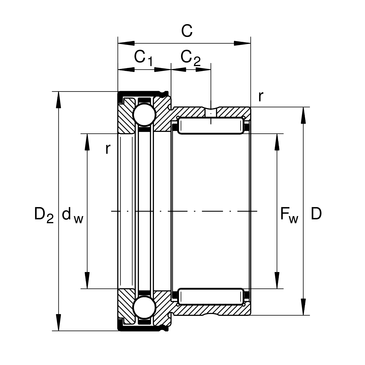

Dimensions

Bore d
12 mm
Outside diameter D
21 mm
Mass
42.73 g

Load ratings and operation

Dynamic load rating C
10100 N
Static load rating C₀
11000 N
Limiting speed
11000 1/min
Sealing
Z
Full manufacturer specification21 parameters · expand
Basic dynamic load rating, axial
10300.0 N
Basic static load rating, axial
15400.0 N
Bore diameter of shaft washer
12.0 mm
Cage
Standard
Category
XL
Distance to lubrication hole
6.5 mm
Fatigue load limit, axial
760.0 N
Fatigue load limit, radial
1950.0 N
Height
23.0 mm
Max. operating temperature
120.0 °C
Maximum outerside diameter flange
27.2 mm
Maximum recess radius
0.3 mm
Min. operating temperature
-30.0 °C
Minimum chamfer
0.3 mm

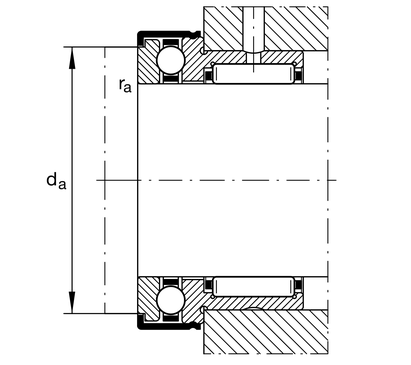

Mounting dimension shaft shoulder
21.7 mm
PFAS
no
REACH
REACH compliant
RoHS
RoHS compliant
Sealing
Z
Suitable inner rings IR
IR9X12X16-XL
Width of the axial brearing component
9.0 mm

Classification

Manufacturer category
Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Needle Roller/Axial Ball Bearings
eCl@ss class
23-05-12-02
UNSPSC
31171512

Description

This combined needle roller bearing carries both radial and axial loads in a single unit, using an axial ball bearing component to support single-direction axial forces, built to DIN 5429. Bore diameter is 12.0 mm, outside diameter 21.0 mm, height 23.0 mm, net mass 42.73 g, with a limiting speed of 11000.0 1/min. The design includes an end cap and a standard cage. Sealing on one side (Z) protects the needle roller set from contamination while allowing grease lubrication, which suits applications where combined radial and single-direction axial loads occur within a compact envelope. The standard cage guides the needle rollers for reliable operation at the rated limiting speed, and the axial ball bearing component handles the axial load path without requiring a separate thrust bearing.

The same bearing from other manufacturers (2 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

NKX12-Z-XL

original — this page

equivalent designation

SKF

NKX12Z

SKF

NKX12ZTN

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

INA

NKX12-Z-XL

Common designation: NKX12 Z

Needle roller/axial ball bearing

⌀12 × 21 mm

od EUR 30.42net

+ VAT 23% = EUR 37.42 gross

Last few (4)dispatch within 24 h
NKX12-Z-XL—
EUR 30.42

Cheaper in larger quantities

from 5 pcsEUR 29.81−2%
from 10 pcsEUR 29.50−3%
from 25 pcsEUR 28.89−5%
from 50 pcsEUR 28.29−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)NKX12-Z-XL#N1
EAN4012802702934
Wymiary⌀12 × 21 mm
Masa42.73 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)
