Technical data

26 parameters

Identification

Manufacturer
INA
Type
Yoke type track roller
Part number (SKU)
LR5201-2Z-TVH-XL#N5
EAN
4054369368208
Cage
TVH

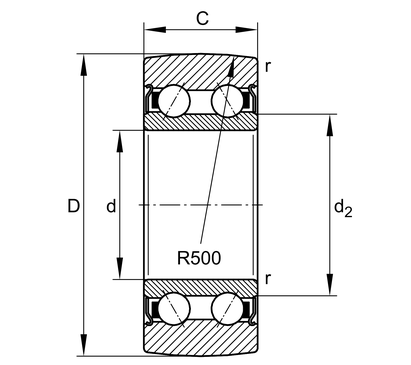

Dimensions

Bore d
12 mm
Outside diameter D
35 mm
Mass
80 g

Load ratings and operation

Sealing
2Z
Full manufacturer specification17 parameters · expand
Cage
TVH
Category
XL
Diameter of thrust washer
19.1 mm
Effective dynamic load rating, radial
8800.0 N
Effective fatigue limit load, radial
315.0 N
Effective static load rating, radial
6100.0 N
Height
15.9 mm
Minimum chamfer
0.6 mm
Outer ring profile
R500
Permissible dynamic load, radial
4800.0 N
PFAS
no
Radius of outer ring outside profile
500.0 mm
REACH
REACH compliant
Relubrication
without
RoHS
RoHS compliant
Sealing
2Z
Speed on permanent grease lubrication
8100.0 1/min

Classification

Manufacturer category
Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Track Rollers
eCl@ss class
23-05-15-90
UNSPSC
31162701

Description

This angular contact ball bearing carries radial and axial loads through a double row of balls guided against a particularly thick-walled outer ring, with axial guidance of the outer ring provided directly by the balls. The design is self-retaining, consisting of an outer ring, a ball and cage assembly, and an inner ring. Bore diameter is 12.0 mm, outside diameter 35.0 mm, height 15.9 mm, and net mass 0.08 kg. The cage, designation TVH, is made from glass fibre reinforced polyamide, and the bearing follows X-life design. Sealing shields (2Z) on both sides protect the raceway and ball set from contamination while retaining the internal grease fill. The thick-walled outer ring allows the bearing to run directly as a track roller surface without a separate outer sleeve, and the self-retaining assembly of inner ring, balls, and cage simplifies installation and removal as a unit. The polyamide cage keeps rolling friction low and supports the compact radial section given by the 12.0 mm bore against the 35.0 mm outside diameter.

INA

LR5201-2Z-TVH-XL

Common designation: LR5201 2Z TVH

Yoke type track roller

⌀12 × 35 mm

od EUR 26.28net

+ VAT 23% = EUR 32.32 gross

Last few (6)dispatch within 24 h
LR5201-2Z-TVH-XL—
EUR 26.28

Cheaper in larger quantities

from 5 pcsEUR 25.75−2%
from 10 pcsEUR 25.49−3%
from 25 pcsEUR 24.96−5%
from 50 pcsEUR 24.44−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)LR5201-2Z-TVH-XL#N5
EAN4054369368208
Wymiary⌀12 × 35 mm
Opakowanie5 szt.
Masa80 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)
