Technical data

22 parameters

Identification

Manufacturer
INA
Type
Yoke type track roller
Part number (SKU)
LR204-2RSR#N50>1
EAN
4064328273221

Dimensions

Bore d
20 mm
Outside diameter D
52 mm
Mass
141 g

Load ratings and operation

Dynamic load rating C
11300 N
Static load rating C₀
5900 N
Sealing
2RSR
Full manufacturer specification12 parameters · expand
Diameter of thrust washer
29.0 mm
Fatigue load limit, radial
300.0 N
Height
14.0 mm
Minimum chamfer
1.0 mm

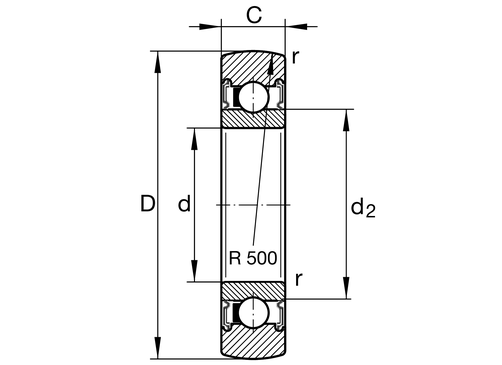

Outer ring profile
R500
PFAS
no
Radius of outer ring outside profile
500.0 mm
REACH
REACH compliant
Relubrication
without
RoHS
RoHS compliant
Sealing
2RSR
Speed on permanent grease lubrication
8000.0 1/min

Classification

Manufacturer category
Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Track Rollers
eCl@ss class
23-05-15-90

Designation changes

Replaces the discontinued designation: LR204-NPP-U

Description

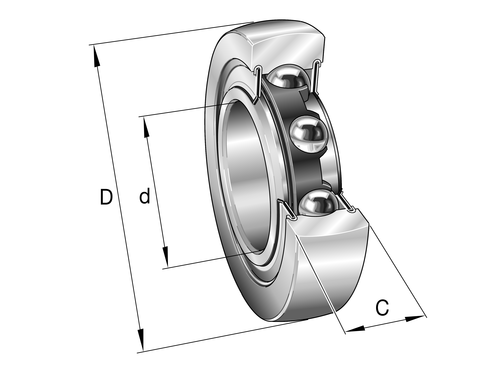

This track roller guides linear or curved motion along a mating track through its particularly thick-walled outer ring, which is axially guided by the ball complement itself rather than a separate flange. The single row of balls runs in a self-retaining cage assembly between the outer ring and the inner ring, giving bore diameter 20.0 mm, outside diameter 52.0 mm, height 14.0 mm, and net mass 0.141 kg. Sealing is provided on both sides (2RSR), combining lip seals with axial and radial sealing action, which keeps contaminants out of the running surfaces and retains lubricant in the bearing. The self-retaining construction and integral axial guidance of the outer ring by the balls allow the roller to run directly on a track surface without needing a separate guide flange, making mounting and alignment straightforward.

The same bearing from other manufacturers (1 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

LR204-2RSR

original — this page

equivalent designation

FAFNIR

LR204NPPU

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

INA

LR204-2RSR

Common designation: LR204 2RS

Yoke type track roller

⌀20 × 52 mm

od EUR 14.10net

+ VAT 23% = EUR 17.34 gross

Temporarily out of stocktemporarily out of stock

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

LR204-2RSR—
EUR 14.10

Cheaper in larger quantities

from 5 pcsEUR 13.82−2%
from 10 pcsEUR 13.68−3%
from 25 pcsEUR 13.39−5%
from 50 pcsEUR 13.11−7%

Our own item, temporarily out of stock — write to us for a date.

Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)LR204-2RSR#N50>1
EAN4064328273221
Wymiary⌀20 × 52 mm
Opakowanie50 szt.
Masa141 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
