Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE110-SX#N1
- EAN
- 4012802534955
Dimensions

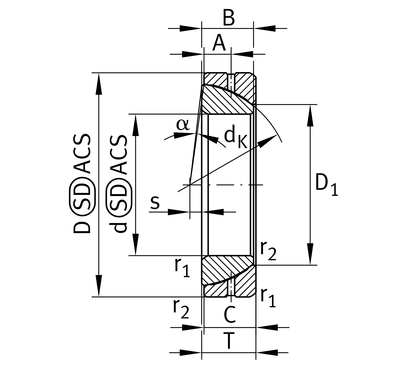

- Bore d
- 110 mm
- Outside diameter D
- 170 mm
- Mass
- 3.78 kg
Load ratings and operation
- Dynamic load rating C
- 610000 N
- Static load rating C₀
- 2340000 N
Full manufacturer specification30 parameters · expand
- Ball diameter
- 160.0 mm
- Bearing inner diameter
- 110.0 mm
- Bore diameter bearing, lower tolerance
- -0.02 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Coating
- Durotect M

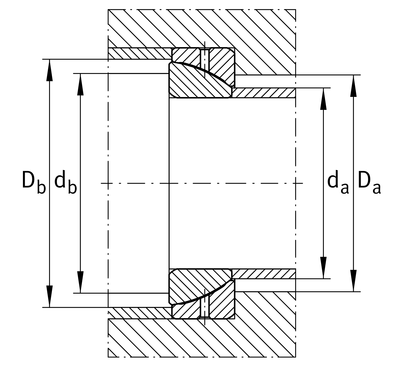

- Connection diameter
- 162.0 mm
- Connection measure Inner ring
- 146.0 mm
- Distance lubrication Bore
- 19.0 mm
- Edge Spacing
- 0.6 mm
- Height
- 38.0 mm
- Height, lower tolerance
- -0.25 mm
- Height, upper tolerance
- 0.25 mm
- Housing Connection Diameter
- 135.0 mm
- Inner diameter of housing washer
- 125.8 mm
- Inner ring width
- 36.0 mm
- Maintenance
- Maintenance required
- Max. operating temperature
- 200.0 °C
- Min. operating temperature
- -60.0 °C
- Outer diameter, upper tolerance
- 0.0 mm
- Outer ring width
- 36.0 mm
- Outside diameter, lower tolerance
- -0.025 mm
- PFAS
- no
- Plane Surface Spacing
- 15.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Tilt angle
- 1.5 °
- Width inner ring, lower tolerance
- -0.4 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width outer ring, lower tolerance
- -0.4 mm
- Width outer ring, upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Plain Bearings › Spherical Plain Bearings › Spherical Plain Bearings, maintenance required
- eCl@ss class
- 23-05-01-06
- UNSPSC
- 31171515
Description
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
INA
GE110-SX
original — this page
equivalent designation
HUNGER
GE110HSS
RBC
MB110-SA
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
