Technical data
48 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller/axial cylindrical roller bearing
- Part number (SKU)
- ZARF30105-TV-A#N1
- EAN
- 4012802422573
- Cage
- TV
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 105 mm
- Mass
- 1.81 kg
Load ratings and operation
- Dynamic load rating C
- 26000 N
- Static load rating C₀
- 47000 N
Full manufacturer specification38 parameters · expand
- Axial runout
- 1.0 µm
- Basic dynamic load rating, axial
- 107000.0 N
- Basic static load rating, axial
- 265000.0 N
- Bearing friction torque
- 2.1 Nm
- Cage
- TV
- Distance to lubrication hole
- 10.0 mm

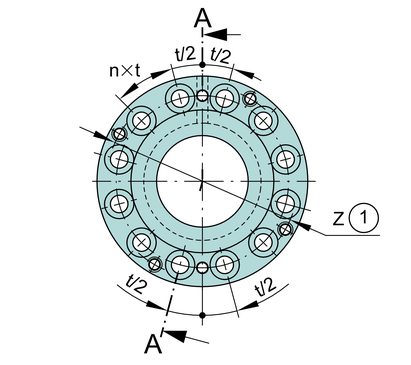

- Division (screwing holes)
- 30.0 °
- Fatigue load limit, axial
- 22900.0 N
- Fatigue load limit, radial
- 6800.0 N
- Height outer ring over wave washer
- 41.0 mm
- Hight
- 66.0 mm
- Inner ring width
- 14.0 mm
- Limiting speed for grease lubrication
- 1300.0 1/min
- Limiting speed for oil lubrication
- 4400.0 1/min
- Lubrication hole diameter
- 3.2 mm
- Mass moment of inertia
- 6.53 kg*cm²
- Max. operating temperature
- 120.0 °C
- Maximum housing shoulder diameter
- 69.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- Minimum shaft shoulder diameter
- 52.0 mm
- Number of screwing holes
- 12.0
- Number of screws
- 12.0
- Outer ring width
- 18.0 mm
- PFAS
- no
- Pitch circle diameter (holes)
- 85.0 mm
- Position bore in the housing
- 0.2 mm
- REACH
- REACH compliant
- Recommended INA precision locknut for axial locking (not included)
- AM30
- Recommended INA precision locknut for radial locking (not included)
- ZMA30/65
- Required locknut force
- 24287.0 N
- Rigidity axial
- 3300.0 N/µm
- Rip diameter shaft washer
- 68.0 mm
- RoHS
- RoHS compliant
- Screw size
- M8
- Split
- 30.0 °
- Tightening torque nut
- 75.0 Nm
- Tilting stiffness
- 1100.0 Nm/mrad
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Combined Axial-, Radial-Super Precision Bearings › Axial-, Radial-Roller Bearings For Screw Drives
- eCl@ss class
- 23-05-12-03
- UNSPSC
- 31171512
Description
Needle roller/axial cylindrical roller bearings ZARF, double direction, for screw mounting
INA
ZARF30105-TV-A
Needle roller/axial cylindrical roller bearing
⌀30 × 105 mm
od EUR 891.79net
+ VAT 23% = EUR 1,096.90 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZARF30105-TV-A—
EUR 891.79
Cheaper in larger quantities
| from 5 pcs | EUR 865.03 | −3% |
| from 10 pcs | EUR 856.11 | −4% |
| from 25 pcs | EUR 838.28 | −6% |
| from 50 pcs | EUR 820.44 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)ZARF30105-TV-A#N1
EAN4012802422573
Wymiary⌀30 × 105 mm
Masa1.81 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
