Technical data

44 parameters

Identification

Manufacturer
FAG
Type
Spherical Roller Bearing
Part number (SKU)
WS22224-E1-XL-K-2RSR#N1
EAN
4054369389074
Cage
JPA

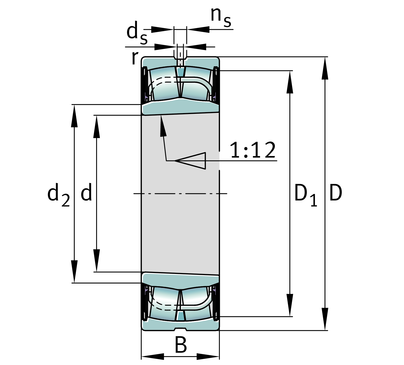

Dimensions

Bore d
120 mm
Outside diameter D
215 mm
Width B
69 mm
Mass
10.27 kg
Radial clearance
CN (Group N)

Load ratings and operation

Dynamic load rating C
640000 N
Static load rating C₀
740000 N
Limiting speed
920 1/min
Sealing
2RSR
Full manufacturer specification30 parameters · expand
Adapter sleeve
H2224-T-WS
Bore type
K
Cage
JPA
Category
XL
Design
E1
Dynamic axial load factor
4.04
Fatigue load limit, radial
73000.0 N
Inner ring raceway diameter
136.8 mm
Limiting value of Fa/Fr for factors X and Y
0.25
Lubricating groove width
12.2 mm
Lubrication hole diameter
6.3 mm
Max. operating temperature
100.0 °C

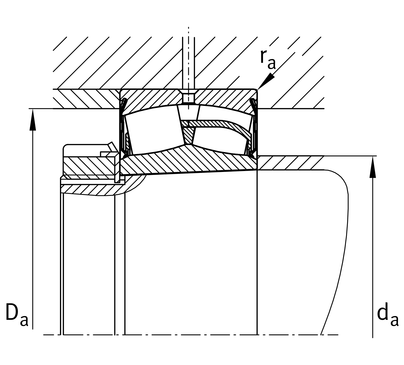

Maximum housing shoulder diameter
203.4 mm
Maximum recess radius
2.1 mm
Maximum shaft shoulder diameter
136.8 mm
Min. operating temperature
-30.0 °C
Minimum chamfer
2.1 mm
Minimum shaft shoulder diameter
132.0 mm
Minimum sleeve cavity diameter
128.0 mm
Minimum sleeve cavity width
11.0 mm
Outer ring bore diameter
203.4 mm
PFAS
no
Radial internal clearance
CN (group N)
REACH
REACH compliant
Relubrication feature
Standard
RoHS
RoHS compliant
Sealing
2RSR
Sealing - excess width
WS
Static axial load factor
2.65
Withdrawal sleeve
AH2224-WS

Classification

Manufacturer category
Rolling and Plain Bearings › Roller Bearings › Spherical Roller Bearings
eCl@ss class
23-05-09-11
UNSPSC
31171505

Description

Spherical roller bearing WS222..-E1-XL-K-2RSR, symmetric with cage guidance ring

FAG

WS22224-E1-XL-K-2RSR

Common designation: WS22224 E1 K 2RS

Spherical Roller Bearing

⌀120 × 215 × 69 mm

od EUR 410.01net

+ VAT 23% = EUR 504.31 gross

To orderdate to be confirmed

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

WS22224-E1-XL-K-2RSR—
EUR 410.01

Cheaper in larger quantities

from 5 pcsEUR 397.90−3%
from 10 pcsEUR 393.79−4%
from 25 pcsEUR 385.59−6%
from 50 pcsEUR 377.39−8%

Brought in to order — we confirm the date after checking with the manufacturer.

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)WS22224-E1-XL-K-2RSR#N1
EAN4054369389074
Wymiary⌀120 × 215 × 69 mm
Masa10.27 kg

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.

Need fitting, lubrication or a vibration check?
