Description
Sealed spherical roller bearings WS222..-E1, lip seals on both sides, for continuous casting machines
FAG
WS22205-E1-XL-2RSR
Spherical Roller Bearing
⌀25 × 52 × 23 mm
od EUR 74.05z VAT
netto EUR 60.20 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
WS22205-E1-XL-2RSR—
EUR 74.05
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)WS22205-E1-XL-2RSR#N1
EAN4054364351137
Wymiary⌀25 × 52 × 23 mm
Masa228 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- FAG
- Type
- Spherical Roller Bearing
- Part number (SKU)
- WS22205-E1-XL-2RSR#N1
- EAN
- 4054364351137
- Cage
- JPA

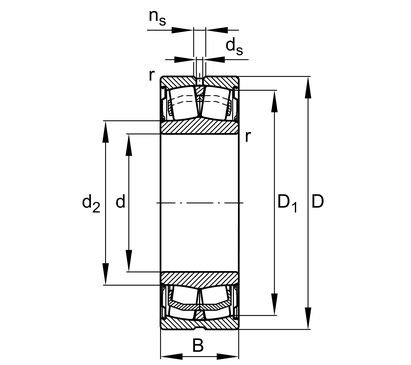

Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 52 mm
- Width B
- 23 mm
- Mass
- 228 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 48500 N
- Static load rating C₀
- 42500 N
- Limiting speed
- 3600 1/min
- Sealing
- 2RSR
Full manufacturer specification25 parameters · expand
- Bore diameter outer ring
- 46.1 mm
- Bore type
- Z
- Cage
- JPA
- Design
- E1
- Diameter lubrication hole
- 3.2 mm
- Dynamic axial load factor
- 3.09
- Fatigue load limit, radial
- 4900.0 N
- Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
- 0.33
- Marketing category
- XL

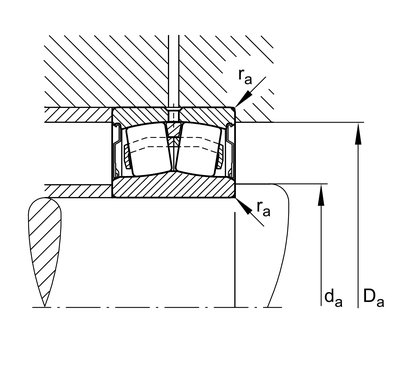

- Maximum diameter of housing shoulder
- 46.4 mm
- Maximum recess radius
- 1.0 mm
- Minimum chamfer dimension
- 1.0 mm
- Minimum diameter shaft shoulder
- 29.8 mm
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter of the inner ring
- 29.8 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- Relubrication feature
- Standard
- RoHS
- RoHS compliant
- Sealing
- 2RSR
- Sealing - excess width
- WS
- Static axial load factor
- 2.03
- Width of lubricating groove
- 4.8 mm
