Technical data

56 parameters

Identification

Manufacturer
INA
Type
Flanged housing unit
Part number (SKU)
TFE40-XL#N1
EAN
4054372603341

Dimensions

Bore d
40 mm
Outside diameter D
80 mm
Mass
1.71 kg

Load ratings and operation

Dynamic load rating C
34500 N
Static load rating C₀
19800 N
Full manufacturer specification47 parameters · expand
Basic dynamic load rating
34500.0 N
Basic static load rating
19800.0 N
Bearing designation
GE40-XL-KTT-B
Bearing included in kit
GE40-XL-KTT-B
Bearing inner diameter
40.0 mm
Bearing outside diameter
80.0 mm
Bearing sealed
yes
Bearing sort
RIBB
Bearing split
no
Category
XL
Diameter spigot
100.0 mm
Diameter spigot clearance
h8
Distance between mounting bolt centerlines (length)
120.0 mm
Fatigue load limit, radial
840.0 N
Fixing bore
11.5 mm
Flange width
145.0 mm
Height flange
145.0 mm
Height housing
28.0 mm
Height spigot
4.0 mm
Housing
GEHFE08-GG-N
Housing height
145.0 mm
Housing included in kit
TFE40-XL
Housing length
145.0 mm
Housing material
GG
Housing opening
durchgehend
Housing shape
Rund
Housing sort
Flanged
Housing split
no
Housing width
56.5 mm
Location on shaft
Acc
Locking collar total width
56.5 mm
Lubrication connection thread
M6
Material
GG
Max. operating temperature
100.0 °C
Min. operating temperature
-20.0 °C
Number of housing bolts
4
Number of screwing holes
4.0
Outer diameter locking collar
58.0 mm
PFAS
no
Pitch circle diameter (holes)
120.0 mm
Raceway distance
11.5 mm
REACH
REACH compliant
RoHS
RoHS compliant
Sealing type
LIP
Thickness of flange
11.5 mm
Total height unit
46.6 mm
Width across flats
5.0 mm

Classification

Manufacturer category
Housings › Radial Insert Ball Bearing Housing Units › Flanged Housings
eCl@ss class
23-05-16-02
UNSPSC
31171501

Description

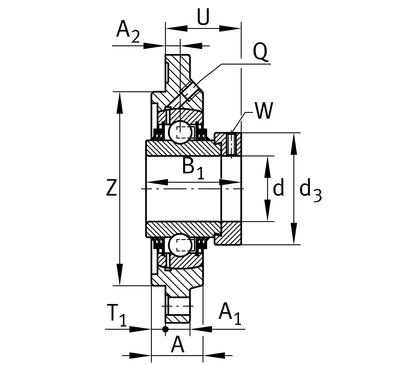

Housing units TFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals

For mounting this bearing

Accessories matching this item. All from our catalogue.

INA

TFE40-XL

Common designation: TFE40

Flanged housing unit

⌀40 × 80 mm

od EUR 70.91net

+ VAT 23% = EUR 87.22 gross

To orderdate to be confirmed

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

TFE40-XL—
EUR 70.91

Cheaper in larger quantities

from 5 pcsEUR 69.49−2%
from 10 pcsEUR 68.79−3%
from 25 pcsEUR 67.37−5%
from 50 pcsEUR 65.95−7%

Brought in to order — we confirm the date after checking with the manufacturer.

Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)TFE40-XL#N1
EAN4054372603341
Wymiary⌀40 × 80 mm
Masa1.71 kg

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.

Need fitting, lubrication or a vibration check?
