Description
Flanged housing units, FD design
INA
RCJ30-TV-VA-FD
Flanged housing unit
⌀30 × 62 mm
od EUR 128.39z VAT
netto EUR 104.38 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RCJ30-TV-VA-FD—
EUR 128.39
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RCJ30-TV-VA-FD#N1
EAN4064327628886
Wymiary⌀30 × 62 mm
Masa520 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
57 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RCJ30-TV-VA-FD#N1
- EAN
- 4064327628886

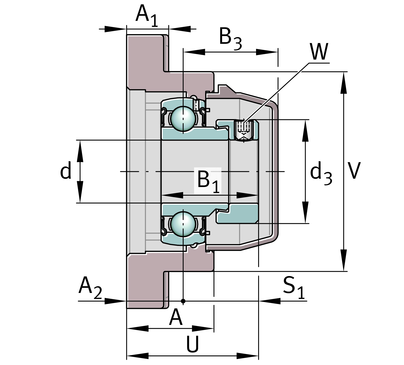

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 520 g
Load ratings and operation
- Dynamic load rating C
- 19460 N
- Static load rating C₀
- 11310 N
Full manufacturer specification48 parameters · expand
- Basic dynamic load rating
- 19460.0 N
- Basic static load rating
- 11310.0 N
- Bearing designation
- GE30-KRR-B-FA107-VA-FD
- Bearing in kit
- GE30-KRR-B-FA107-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- 1/4"-28 UNF
- Corrosion resistant bearing
- VA
- Distance between mounting bolt centerlines (length)
- 83.0 mm
- Distance fixing bore
- 83.0 mm
- Distance housing centre to cap end
- 39.5 mm
- Distance of raceway to locking collar
- 27.7 mm
- Distance raceway
- 19.2 mm
- Fatigue load limit, radial
- 475.0 N
- Fixing bore
- 11.0 mm
- Flange width
- 107.0 mm
- Height housing
- 31.5 mm
- Housing
- GEH.CJ06-TV-WHT
- Housing height
- 107.0 mm
- Housing in kit
- RCJ30-TV-VA-FD
- Housing length
- 107.0 mm
- Housing material
- PL
- Housing opening
- combi
- Housing qty bolts
- 4
- Housing shape
- Viereck
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 46.9 mm
- Inner diameter bearing
- 30.0 mm
- Load carrying capacity (housing)
- 17700.0 N
- Location on shaft
- Acc
- Locking collar total width
- 35.7 mm
- Material
- TV-FD
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter bearing
- 62.0 mm
- Outside diameter locking device
- 44.5 mm
- PFAS
- nein
- Protecting cap
- KASK06-S-G-WHT
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Shoulder diameter housing
- 80.0 mm
- Special material
- TV
- Thickness of flange
- 14.3 mm
- Total height unit
- 46.9 mm
- Width across flats
- 3.0 mm
