Description
Housing units RCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, R seals
INA
RCJT30-XL-N
Flanged housing unit
⌀30 × 62 mm
od EUR 33.41z VAT
netto EUR 27.16 · cena detaliczna
EUR 36.60−9%
RCJT30-XL-N—
EUR 36.60
EUR 33.41Cheaper in larger quantities
| from 10 pcs | EUR 29.17 | −2% |
| from 50 pcs | EUR 28.57 | −4% |
| from 250 pcs | EUR 28.28 | −5% |
Last few (6)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)RCJT30-XL-N#N1
EAN4012802836844
Wymiary⌀30 × 62 mm
Masa900 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
56 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RCJT30-XL-N#N1
- EAN
- 4012802836844

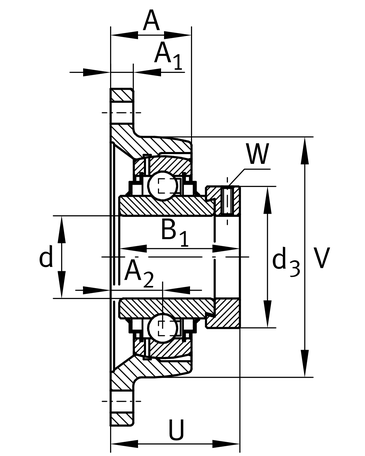

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 900 g
Load ratings and operation
- Dynamic load rating C
- 20700 N
- Static load rating C₀
- 11300 N
Full manufacturer specification47 parameters · expand
- Basic dynamic load rating
- 20700.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- GE30-XL-KRR-B
- Bearing in kit
- GE30-XL-KRR-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 116.5 mm
- Distance fixing bore
- 116.5 mm
- Distance raceway
- 20.0 mm
- Fatigue load limit, radial
- 530.0 N
- Fixing bore
- 11.5 mm
- Flange width
- 80.0 mm
- Groove
- N
- Height flange
- 142.0 mm
- Height housing
- 31.0 mm
- Housing
- GEHCJT06-GG-N
- Housing height
- 142.0 mm
- Housing in kit
- RCJT30-XL-N
- Housing length
- 80.0 mm
- Housing material
- GG
- Housing opening
- combi
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 50.2 mm
- Inner diameter bearing
- 30.0 mm
- Location on shaft
- Acc
- Locking collar total width
- 48.5 mm
- Marketing category
- XL
- Material
- GG
- Number of screwing holes
- 2.0
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 62.0 mm
- Outside diameter locking collar
- 44.0 mm
- PFAS
- nein
- Protecting cap
- KASK06
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 80.0 mm
- Thickness of flange
- 12.0 mm
- Total height unit
- 50.2 mm
- Width of flats
- 4.0 mm
