Description
Super precision cylindrical roller bearings NN30..-D-K-TVP-SP, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage
FAG
NN3009-D-K-TVP-SP-XL
Cylindrical roller bearing
⌀45 × 75 × 23 mm
od EUR 283.12z VAT
netto EUR 230.18 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NN3009-D-K-TVP-SP-XL—
EUR 283.12
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NN3009-D-K-TVP-SP-XL#N1
EAN4054369365146
Wymiary⌀45 × 75 × 23 mm
Masa357 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
36 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- NN3009-D-K-TVP-SP-XL#N1
- EAN
- 4054369365146
- Cage
- TVP
- Tolerance class
- SP

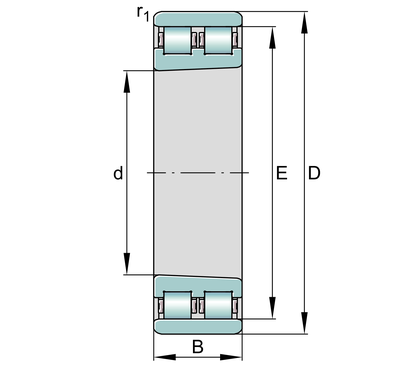

Dimensions
- Bore d
- 45 mm
- Outside diameter D
- 75 mm
- Width B
- 23 mm
- Mass
- 357 g
- Radial clearance
- C1 (Group 1)
Load ratings and operation
- Dynamic load rating C
- 59000 N
- Static load rating C₀
- 65000 N
Full manufacturer specification23 parameters · expand

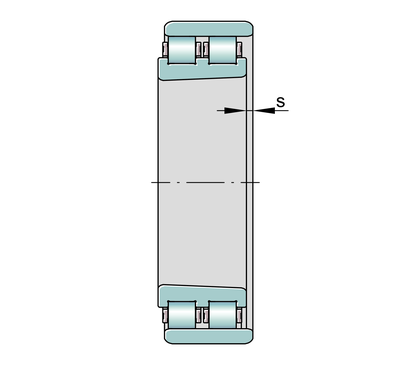

- Axial displacement
- 1.7 mm
- Bore design
- K
- Cage
- TVP
- Change mark
- D

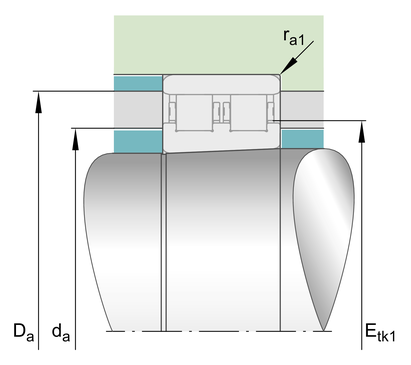

- Diameter of housing shoulder
- 69.2 mm
- Diameter shaft shoulder
- 53.5 mm
- Diameter shaft shoulder tolerance
- h12
- Fatigue load limit, radial
- 10200.0 N
- Injection pitch diameter min
- 66.2 mm
- Limiting speed for grease lubrication
- 14400.0 1/min
- Limiting speed for oil lubrication
- 16900.0 1/min
- Marketing category
- XL
- Maximum recess radius
- 1.0 mm
- Minimum chamfer dimension
- 1.0 mm
- Number of rows
- 2
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter outer ring
- 67.5 mm
- Radial internal clearance
- C1 (Group 1)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter outer ring clearance
- H12
