Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- NKI30/20-F-XL#N5
- EAN
- 4054369071252
- Cage
- F
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 45 mm
- Width B
- 20 mm
- Mass
- 112 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 27500 N
- Static load rating C₀
- 41500 N
- Limiting speed
- 12900 1/min
Full manufacturer specification14 parameters · expand
- Axial displacement
- 0.5 mm
- Cage
- F
- Category
- XL
- Coating
- without
- Fatigue load limit, radial
- 7400.0 N
- Inner ring raceway diameter
- 35.0 mm
- Max. operating temperature
- 120.0 °C
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- PFAS
- no
- Radial internal clearance
- CN (group N)
- REACH
- REACH compliant
- Reference speed
- 7200.0 1/min
- RoHS
- RoHS compliant
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Machined Needle Roller Bearings
- eCl@ss class
- 23-05-09-07
- UNSPSC
- 31171512
Description

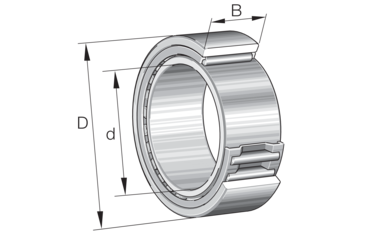

Needle roller bearing NKI..-F-XL, single row, with inner ring, outer ring with 2 bords
INA
NKI30/20-F-XL
Common designation: NKI30/20 F
Needle roller bearing
⌀30 × 45 × 20 mm
od EUR 23.61net
+ VAT 23% = EUR 29.04 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NKI30/20-F-XL—
EUR 23.61
Cheaper in larger quantities
| from 5 pcs | EUR 23.14 | −2% |
| from 10 pcs | EUR 22.90 | −3% |
| from 25 pcs | EUR 22.43 | −5% |
| from 50 pcs | EUR 21.96 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)NKI30/20-F-XL#N5
EAN4054369071252
Wymiary⌀30 × 45 × 20 mm
Opakowanie5 szt.
Minimum order5 szt.
Masa112 g
Ten towar sprzedawany jest w opakowaniach po 5 szt.
