Technical data
22 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- LR208-X-2RS#N1
- EAN
- 4012802782585

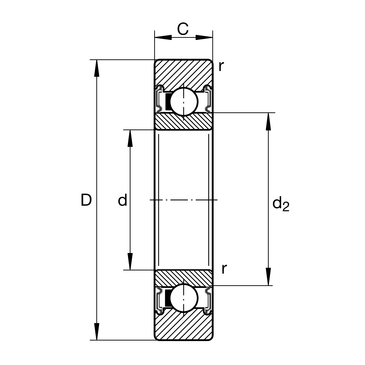

Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 85 mm
- Mass
- 410 g
Load ratings and operation
- Dynamic load rating C
- 22800 N
- Static load rating C₀
- 13600 N
- Sealing
- 2RS
Full manufacturer specification12 parameters · expand
- Diameter of thrust washer
- 48.4 mm
- Fatigue load limit, radial
- 563.0 N
- Height
- 18.0 mm
- Minimum chamfer
- 1.1 mm
- Outer ring profile
- X
- PFAS
- no
- Radius of outer ring outside profile
- 500.0 mm
- REACH
- REACH compliant
- Relubrication
- without
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Speed on permanent grease lubrication
- 4000.0 1/min
Classification
- Manufacturer category
- Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Track Rollers
- eCl@ss class
- 23-05-15-90
Description
Yoke type track rollers LR2..-2RS/2RSR, single row self-retaining ball bearings with particularly thick-walled outer ring, ball and cage assembly and an inner ring, axial guidance of outer ring is provided by the balls, lip seal on both sides, with axial sealing action/with radial sealing action
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
LR208-X-2RS
original — this page
equivalent designation
FAFNIR
LR208NPP
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
LR208-X-2RS
Yoke type track roller
⌀40 × 85 mm
od EUR 60.42net
+ VAT 23% = EUR 74.32 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 59.21 | −2% |
| from 10 pcs | EUR 58.60 | −3% |
| from 25 pcs | EUR 57.40 | −5% |
| from 50 pcs | EUR 56.19 | −7% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
