Technical data
45 parametersIdentification
- Manufacturer
- FAG
- Type
- High speed spindle bearing
- Part number (SKU)
- HS7003-C-T-P4S-UL#N1
- EAN
- 4012801616560
- Cage
- T
- Tolerance class
- P4S

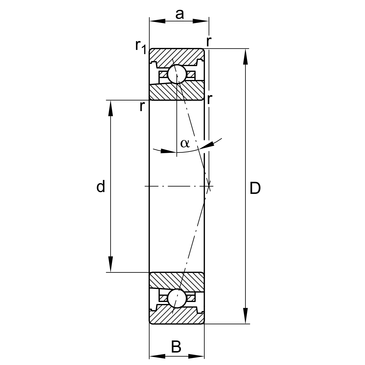

Dimensions
- Bore d
- 17 mm
- Outside diameter D
- 35 mm
- Width B
- 10 mm
- Mass
- 42 g
Load ratings and operation
- Dynamic load rating C
- 3550 N
- Static load rating C₀
- 1600 N
- Limiting speed
- 95000 1/min
- Sealing
- without
Full manufacturer specification31 parameters · expand
- Arrangement bearing set
- U
- Axial rigidity heavy
- 31.0 N/µm
- Axial rigidity light
- 14.0 N/µm
- Axial rigidity medium
- 23.0 N/µm
- Cage
- T
- Contact angle
- C

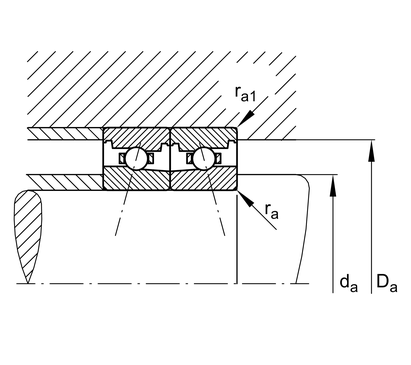

- Diameter shaft shoulder clearance
- h12
- Distance between pressure cone apexes
- 8.5 mm
- Fatigue load limit, radial
- 170.0 N
- Lift-off force heavy
- 253.0 N
- Lift-off force light
- 38.0 N
- Lift-off force medium
- 121.0 N
- Limiting speed for grease lubrication
- 63000.0 1/min
- Limiting speed for oil lubrication
- 95000.0 1/min
- Max. operating temperature
- 100.0 °C

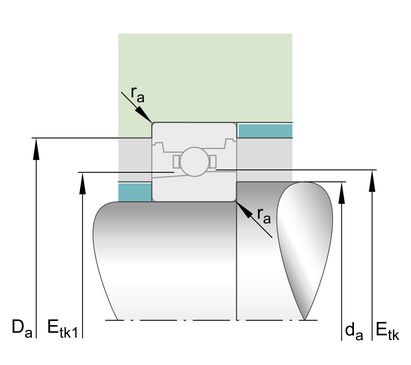

- Maximum diameter injection pitch
- 24.8 mm
- Maximum recess radius
- 0.1 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- Minimum diameter injection pitch
- 22.9 mm
- Outer ring shoulder diameter
- 32.0 mm
- PFAS
- no
- Preload
- L
- Preload force heavy
- 76.0 N
- Preload force light
- 13.0 N
- Preload force medium
- 38.0 N
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- without
- Shaft shoulder diameter
- 21.0 mm
- Shoulder diameter outer ring clearance
- H12
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Radial Super Precision Bearings › Spindle Bearings
- eCl@ss class
- 23-05-08-03
- UNSPSC
- 31171504
Description
This spindle bearing is built for precision rotation at high speed, with a bore of 17.0 mm, outside diameter of 35.0 mm, and width of 10.0 mm. It has a contact angle of 15° and restricted tolerances (P4S), giving it the accuracy needed for stable operation at speeds up to 95000 1/min. The cage is marked T, the bearing is supplied without sealing, and its net mass is 42.0 g. Being adjusted and matched in pairs or sets, this bearing is intended for arrangements where preload must be set precisely to control axial and radial stiffness. The restricted P4S tolerance class supports tight running accuracy and low vibration under high rotational speed, while the absence of sealing allows for external lubrication and cooling suited to high-speed spindle applications. The 15° contact angle provides a balance between axial and radial load carrying capability typical of this bearing arrangement.
HS7003-C-T-P4S-UL
High speed spindle bearing
⌀17 × 35 × 10 mm
od EUR 59.45net
+ VAT 23% = EUR 73.12 gross
Cheaper in larger quantities
| from 5 pcs | EUR 58.26 | −2% |
| from 10 pcs | EUR 57.66 | −3% |
| from 25 pcs | EUR 56.48 | −5% |
| from 50 pcs | EUR 55.29 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
