Technical data
41 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE30-AX#N1
- EAN
- 4012802534580

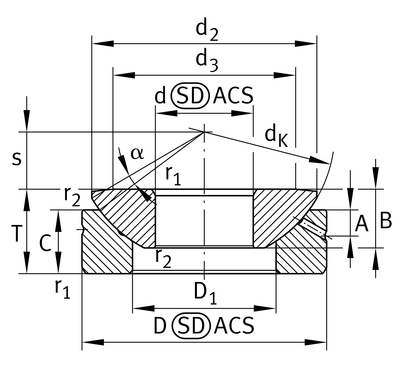

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 75 mm
- Mass
- 645 g
Load ratings and operation
- Dynamic load rating C
- 220000 N
- Static load rating C₀
- 848000 N
Full manufacturer specification32 parameters · expand
- Ball diameter
- 80.0 mm
- Basic dynamic load rating, axial
- 220000.0 N
- Basic static load rating, axial
- 848000.0 N
- Bearing inner diameter
- 30.0 mm
- Bore diameter bearing, lower tolerance
- -0.01 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Coating
- Durotect M
- Connection measure Inner ring
- 69.0 mm
- Distance lubrication Bore
- 8.0 mm
- Edge Spacing
- 0.3 mm
- Front surface diameter of shaft washer
- 56
- Height
- 26.0 mm
- Height, lower tolerance
- -0.4 mm
- Height, upper tolerance
- 0.0 mm
- Housing Connection Diameter
- 49.0 mm
- Inner diameter of housing washer
- 44.0 mm
- Inner ring width
- 18.0 mm
- Maintenance
- Maintenance required
- Max. operating temperature
- 200.0 °C
- Min. operating temperature
- -60.0 °C
- Outer diameter, upper tolerance
- 0.0 mm
- Outer ring width
- 19.5 mm
- Outside diameter, lower tolerance
- -0.013 mm
- PFAS
- no
- Plane Surface Spacing
- 17.5 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Tilt angle
- 6.0 °
- Width inner ring, lower tolerance
- -0.24 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Plain Bearings › Spherical Plain Bearings › Spherical Plain Bearings, maintenance required
- eCl@ss class
- 23-05-01-06
- UNSPSC
- 31171515
Description
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
GE30-AX
original — this page
equivalent designation
HUNGER
GE30HX
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
GE30-AX
Spherical plain bearing
⌀30 × 75 mm
od EUR 114.56net
+ VAT 23% = EUR 140.91 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 112.27 | −2% |
| from 10 pcs | EUR 111.12 | −3% |
| from 25 pcs | EUR 108.83 | −5% |
| from 50 pcs | EUR 106.54 | −7% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
