Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE25-FW-2RS#N1
- EAN
- 4012802547672

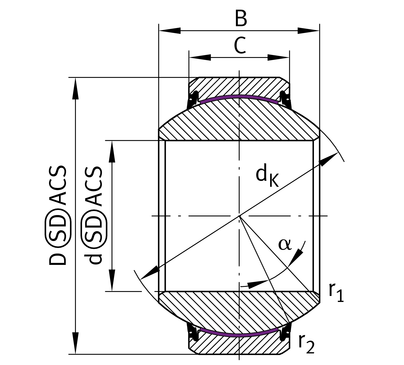

Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 47 mm
- Mass
- 187 g
Load ratings and operation
- Dynamic load rating C
- 165000 N
- Static load rating C₀
- 275000 N
- Sealing
- 2RS
Full manufacturer specification29 parameters · expand
- Ball diameter
- 40.7 mm
- Bore diameter bearing, lower tolerance
- -0.01 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore lining
- without
- Coating
- without
- Connection measurement, inner ring
- 29.5 mm
- Edge Spacing
- 0.6 mm
- Fabric
- ELGOGLIDE

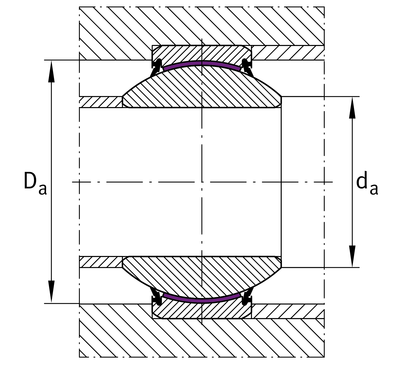

- Housing Connection Diameter
- 38.0 mm
- Inner ring width
- 28.0 mm
- Maintenance
- Maintenance free
- Material
- Steel
- Max. operating temperature
- 130.0 °C
- Min. operating temperature
- -30.0 °C
- Outer ring width
- 18.0 mm
- Outside diameter, lower tolerance
- -0.011 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- yes
- Radial Clearance
- 0 - 0,05
- Radial clearance, maximum
- 0.05 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Tilt angle
- 17.0 °
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Plain Bearings › Spherical Plain Bearings › Spherical Plain Bearings, maintenance free
- eCl@ss class
- 23-05-01-06
- UNSPSC
- 31171515
Description
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
GE25-FW-2RS
original — this page
equivalent designation
HUNGER
GE25BW-A
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
GE25-FW-2RS
Spherical plain bearing
⌀25 × 47 mm
