Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE140-UK-2TS#N1
- EAN
- 4012802569483

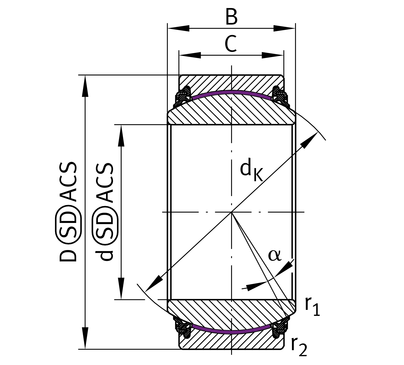

Dimensions
- Bore d
- 140 mm
- Outside diameter D
- 210 mm
- Mass
- 11.12 kg
Load ratings and operation
- Dynamic load rating C
- 3020000 N
- Static load rating C₀
- 5040000 N
- Sealing
- 2TS
Full manufacturer specification29 parameters · expand
- Ball diameter
- 180.0 mm
- Bore diameter bearing, lower tolerance
- -0.025 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore lining
- without
- Coating
- without
- Connection measurement, inner ring
- 155.9 mm
- Edge Spacing
- 1.0 mm
- Fabric
- ELGOGLIDE

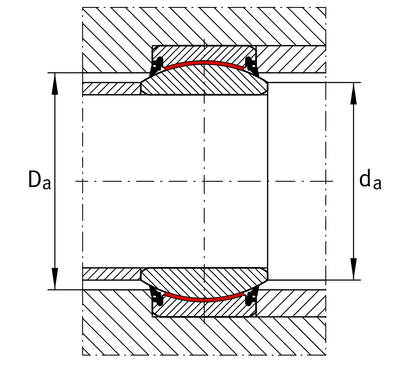

- Housing Connection Diameter
- 173.0 mm
- Inner ring width
- 90.0 mm
- Maintenance
- Maintenance free
- Material
- Steel
- Max. operating temperature
- 100.0 °C
- Min. operating temperature
- -30.0 °C
- Outer ring width
- 70.0 mm
- Outside diameter, lower tolerance
- -0.03 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- yes
- Radial Clearance
- 0 - 0,085
- Radial clearance, maximum
- 0.085 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- 2TS
- Tilt angle
- 7.0 °
- Width inner ring, lower tolerance
- -0.25 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width outer ring, lower tolerance
- -0.6 mm
- Width outer ring, upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Plain Bearings › Spherical Plain Bearings › Spherical Plain Bearings, maintenance free
- eCl@ss class
- 23-05-01-06
- UNSPSC
- 31171515
Description
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, DIN ISO 12240-1, Tolerances of the outside diameter and bore not according to DIN ISO 12240-1, dimension series E, sealed
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
INA
GE140-UK-2TS
original — this page
equivalent designation
RBC
GE140-9L-DLP-TS
SKF
GE140TXA-2LS
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
