Description
Deep groove ball bearing 42..-BB-TVH, double row, plastic cage
FAG
4200-BB-TVH
Deep groove ball bearing
⌀10 × 30 × 14 mm
od EUR 14.27z VAT
netto EUR 11.60 · cena detaliczna
EUR 19.02−25%
4200-BB-TVH—
EUR 19.02
EUR 14.27Cheaper in larger quantities
| from 10 pcs | EUR 15.16 | −2% |
| from 50 pcs | EUR 14.85 | −4% |
| from 250 pcs | EUR 14.69 | −5% |
In stock (21 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)4200-BB-TVH#N1
EAN4026677952301
Wymiary⌀10 × 30 × 14 mm
Masa50 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
33 parametersIdentification
- Manufacturer
- FAG
- Type
- Deep groove ball bearing
- Part number (SKU)
- 4200-BB-TVH#N1
- EAN
- 4026677952301
- Cage
- TVH
- Tolerance class
- PN

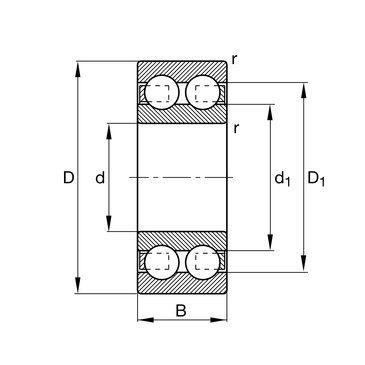

Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 30 mm
- Width B
- 14 mm
- Mass
- 50 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 8300 N
- Static load rating C₀
- 4750 N
- Limiting speed
- 25500 1/min
Full manufacturer specification19 parameters · expand
- Cage
- TVH
- Calculation factor
- 13.1
- Design variant
- B
- Dimensional / heat stabilization
- SN
- Fatigue load limit, radial
- 247.0 N
- Lubricant
- GA14

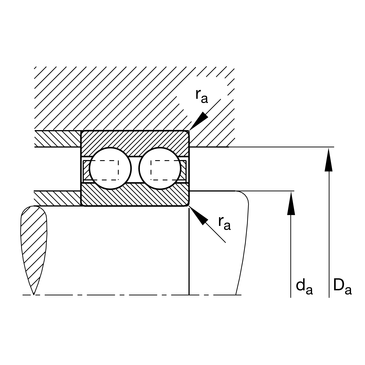

- Maximum diameter of housing shoulder
- 25.8 mm
- Maximum fillet radius
- 0.6 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum diameter shaft shoulder
- 14.2 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- Reference speed
- 21600.0 1/min
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 16.6 mm
- Shoulder diameter outer ring
- 23.08 mm
