Technical data
34 parametersIdentification
- Manufacturer
- FAG
- Type
- Angular contact ball bearing
- Part number (SKU)
- 3317-M#N1
- EAN
- 4012801271370
- Cage
- M
- Tolerance class
- PN

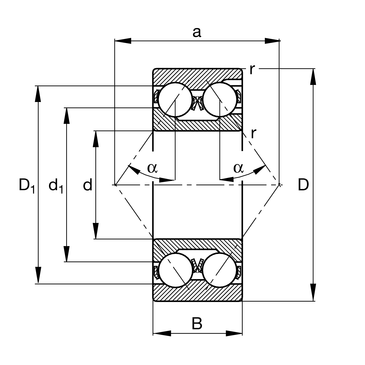

Dimensions
- Bore d
- 85 mm
- Outside diameter D
- 180 mm
- Width B
- 73 mm
- Mass
- 8.41 kg
Load ratings and operation
- Dynamic load rating C
- 194000 N
- Static load rating C₀
- 255000 N
- Limiting speed
- 5000 1/min
Full manufacturer specification21 parameters · expand
- Axial internal clearance
- CN
- Cage
- M
- Contact angle
- 35.0 °
- Design variant
- FN
- Dimensional / heat stabilization
- S0
- Distance between pressure cone apexes
- 131.5 mm
- Fatigue load limit, radial
- 11400.0 N
- Inner ring shoulder diameter
- 119.6 mm
- Lubricant
- without
- Max. operating temperature
- 150.0 °C

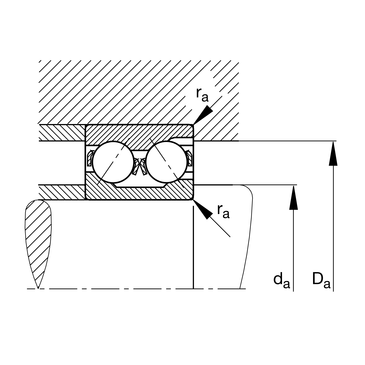

- Maximum fillet radius
- 2.5 mm
- Maximum housing shoulder diameter
- 166.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 3.0 mm
- Minimum shaft shoulder diameter
- 99.0 mm
- Outer ring shoulder diameter
- 159.98 mm
- PFAS
- no
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 3600.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Type of sealing
- without
Classification
- Manufacturer category
- Rolling and Plain Bearings › Ball Bearings › Angular Contact Ball Bearings
- eCl@ss class
- 23-05-08-03
- UNSPSC
- 31171504
Description
Angular contact ball bearing 33..-M, double row, with filling slot, solid brass cage
The same bearing from other manufacturers (5 designations)
Same size and design — suffix notation differs between brands.
FAG
3317-M
original — this page
equivalent designation
GPZ
3056317
KOYO
3317FY
SKF
3317
STEYR
3317
conditionally interchangeable
These items are conditionally interchangeable — check the design before ordering.
SKF
3317A
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
3317-M
Angular contact ball bearing
⌀85 × 180 × 73 mm
od EUR 374.90net
+ VAT 23% = EUR 461.13 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 363.66 | −3% |
| from 10 pcs | EUR 359.91 | −4% |
| from 25 pcs | EUR 352.41 | −6% |
| from 50 pcs | EUR 344.91 | −8% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
