Technical data
35 parametersIdentification
- Manufacturer
- FAG
- Type
- Angular contact ball bearing
- Part number (SKU)
- 3307-DA-MA#N1
- EAN
- 4012801010412
- Cage
- MA
- Tolerance class
- PN

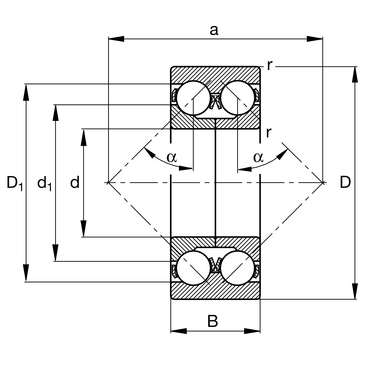

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 80 mm
- Width B
- 34.9 mm
- Mass
- 920 g
Load ratings and operation
- Dynamic load rating C
- 50000 N
- Static load rating C₀
- 41000 N
- Limiting speed
- 12400 1/min
- Sealing
- without
Full manufacturer specification21 parameters · expand
- Axial internal clearance
- CN
- Cage
- MA
- Contact angle
- 45.0 °
- Design variant
- DA
- Dimensional / heat stabilization
- S0
- Distance between pressure cone apexes
- 74.8 mm
- Fatigue load limit, radial
- 2650.0 N
- Inner ring shoulder diameter
- 55.2 mm
- Lubricant
- without
- Max. operating temperature
- 150.0 °C
- Maximum fillet radius
- 1.5 mm
- Maximum housing shoulder diameter
- 71.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 1.5 mm
- Minimum shaft shoulder diameter
- 44.0 mm
- Outer ring shoulder diameter
- 69.5 mm
- PFAS
- no
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 7100.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Sealing
- without
Classification
- Manufacturer category
- Rolling and Plain Bearings › Ball Bearings › Angular Contact Ball Bearings
- eCl@ss class
- 23-05-08-03
- UNSPSC
- 31171504
Description
Angular contact ball bearing 33..-DA-MA, double row, split inner ring, solid brass cage
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
FAG
3307-DA-MA
original — this page
equivalent designation
SKF
305101M
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
3307-DA-MA
Angular contact ball bearing
⌀35 × 80 × 34.9 mm
od EUR 118.67net
+ VAT 23% = EUR 145.96 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 116.29 | −2% |
| from 10 pcs | EUR 115.11 | −3% |
| from 25 pcs | EUR 112.73 | −5% |
| from 50 pcs | EUR 110.36 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
