Technical data
36 parametersIdentification
- Manufacturer
- FAG
- Type
- Self-aligning ball bearing
- Part number (SKU)
- 1320-M#N1
- EAN
- 4012801472869
- Cage
- M
- Tolerance class
- PN
Dimensions
- Bore d
- 100 mm
- Outside diameter D
- 215 mm
- Width B
- 47 mm
- Mass
- 8.70 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 145000 N
- Static load rating C₀
- 57000 N
- Limiting speed
- 4700 1/min
Full manufacturer specification22 parameters · expand
- Bore type
- Z
- Cage
- M
- Dynamic axial load factor
- 2.68
- Fatigue load limit, radial
- 2900.0 N
- Inner ring shoulder diameter
- 135.92 mm
- Limiting value of Fa/Fr for factors X and Y
- 0.23
- Lubricant
- without
- Max. operating temperature
- 150.0 °C
- Maximum fillet radius
- 2.5 mm
- Maximum housing shoulder diameter
- 201.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 3.0 mm
- Minimum shaft shoulder diameter
- 114.0 mm
- Outer ring shoulder diameter
- 181.3 mm

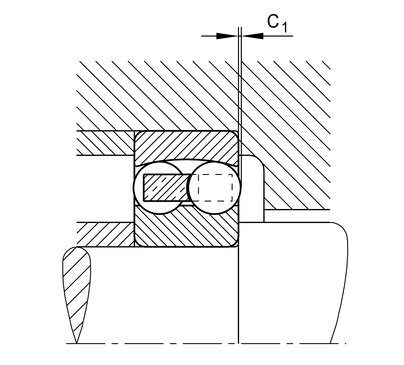

- Overhang rolling element
- 2.4 mm
- PFAS
- no
- Radial internal clearance
- CN (group N)
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 3850.0 1/min
- RoHS
- RoHS compliant with declarable substances
- Static axial load factor
- 2.81
- Type of seal
- without
Classification
- Manufacturer category
- Rolling and Plain Bearings › Ball Bearings › Self-Aligning Ball Bearings
- eCl@ss class
- 23-05-08-06
- UNSPSC
- 31171504
Description
Self-aligning ball bearing 13..-M, solid brass cage
The same bearing from other manufacturers (7 designations)
Same size and design — suffix notation differs between brands.
FAG
1320-M
original — this page
equivalent designation
FEDERAL
1320SA
GPZ
1320
KOYO
1320
MRC
1320
NTN
1320
RHP
1320
SKF
1320
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
1320-M
Self-aligning ball bearing
⌀100 × 215 × 47 mm
od EUR 495.98net
+ VAT 23% = EUR 610.06 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 481.93 | −3% |
| from 10 pcs | EUR 476.96 | −4% |
| from 25 pcs | EUR 467.02 | −6% |
| from 50 pcs | EUR 457.09 | −8% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
