Technical data

43 parameters

Identification

Manufacturer
INA
Type
Axial angular contact ball bearing
Part number (SKU)
ZKLN1545-2RS-PE#N1
EAN
4012802078954
Tolerance class
PE

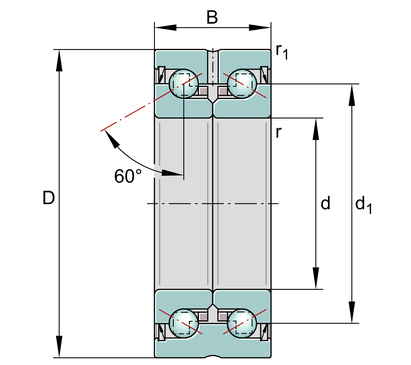

Dimensions

Bore d
15 mm
Outside diameter D
45 mm
Width B
25 mm
Mass
219 g

Load ratings and operation

Dynamic load rating C
18000 N
Static load rating C₀
28500 N
Sealing
2RS
Full manufacturer specification31 parameters · expand
Axial runout
5.0 µm
Basic dynamic load rating, axial
18000.0 N
Basic static load rating, axial
28500.0 N
Bearing frictional torque
0.2 Nm
Bore diameter lower tolerance
-0.01 mm
Bore diameter upper tolerance
0.0 mm
Contact angle
60.0 °
Fatigue load limit, axial
1300.0 N
Limiting speed for grease lubrication
8200.0 1/min
Mass moment of inertia
0.102 kg*cm²
Max. operating temperature
120.0 °C

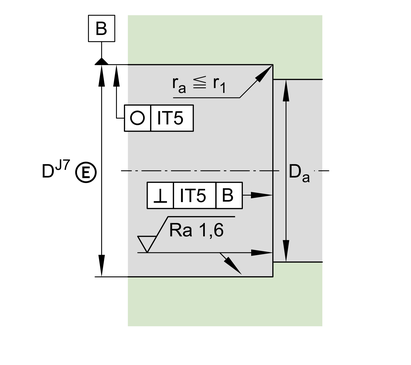

Maximum diameter of housing
35.0 mm
Min. operating temperature
-30.0 °C
Minimum chamfer
0.3 mm

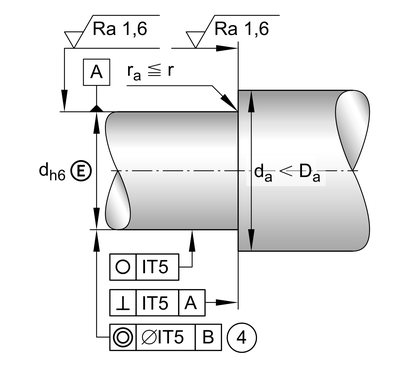

Minimum diameter shaft
20.0 mm
Outside diameter lower tolerance
-0.011 mm
Outside diameter upper tolerance
0.0 mm
PFAS
no
REACH
REACH compliant
Recommended INA precision locknut for axial locking
AM15
Recommended INA precision locknut for radial locking
ZM15
Required locknut force axial
5484.0 N
Rib diameter inner ring
28.0 mm
Rigidity axial
400.0 N/µm
RoHS
RoHS compliant
Sealing
2RS
Thermally safe operating speed
3500.0 1/min
Tightening torque for the recommended INA precision locknut
10.0 Nm
Tilting rigidity
65.0 Nm/mrad
Width lower tolerance
-0.25 mm
Width upper tolerance
0.0 mm

Classification

Manufacturer category
Rolling and Plain Bearings › Super Precision Bearings › Axial-super Precision Bearings › Axial-angular Contact Ball Bearings For Screw Drives
eCl@ss class
23-05-10-02
UNSPSC
31171507

Description

This angular contact ball bearing accommodates axial loads acting in both directions, with the two rows arranged for double-direction operation. Bore diameter is 15.0 mm, outside diameter 45.0 mm, width 25.0 mm, and net mass is 0.219 kg. The bearing is manufactured to increased tolerances and sealed on both sides with 2RS lip seals. The double-direction design allows this bearing to take up axial forces from either side along the shaft axis, making it suitable for arrangements where reversing axial loads must be located without additional support bearings. The increased tolerance class supports precise axial positioning under load. The lip seals on both sides retain the internal lubricant and prevent ingress of contaminants, allowing the bearing to run without additional external sealing measures.

INA

ZKLN1545-2RS-PE

Axial angular contact ball bearing

⌀15 × 45 × 25 mm
