Technical data
52 parametersIdentification
- Manufacturer
- INA
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- ZKLF30100-2RS-2AP-XL#N1
- EAN
- 4012802078718
- Tolerance class
- Standard

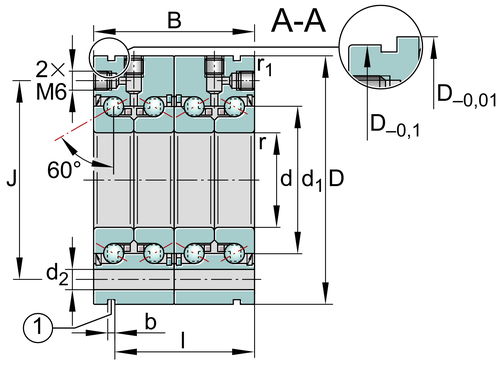

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 100 mm
- Width B
- 76 mm
- Mass
- 3.37 kg
Load ratings and operation
- Dynamic load rating C
- 106000 N
- Static load rating C₀
- 216000 N
- Sealing
- 2RS
Full manufacturer specification40 parameters · expand
- Axial runout
- 2.5 µm
- Basic dynamic load rating, axial
- 106000.0 N
- Basic static load rating, axial
- 216000.0 N
- Bore diameter lower tolerance
- -0.005 mm
- Bore diameter upper tolerance
- 0.0 mm
- Category
- XL
- Contact angle
- 60.0 °
- Distance of extraction slot
- 68.0 mm
- Fatigue load limit, axial
- 13100.0 N
- Fixing holes diameter
- 8.8 mm
- Fixing screw size
- M8
- Limiting speed for grease lubrication
- 4500.0 1/min
- Lubrication connection thread
- M6
- Max. operating temperature
- 120.0 °C
- Maximum diameter of housing
- 64.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- Minimum diameter shaft
- 47.0 mm
- Number of bearings
- 2AP
- Number of holes in adjacent construction
- 8.0
- Outside diameter lower tolerance
- -0.1 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- no

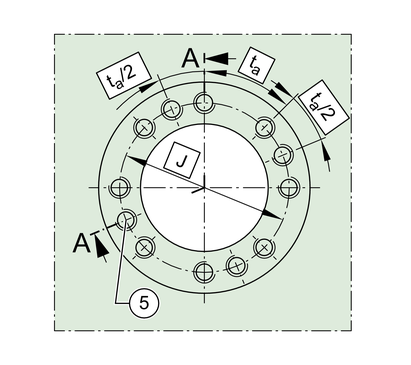

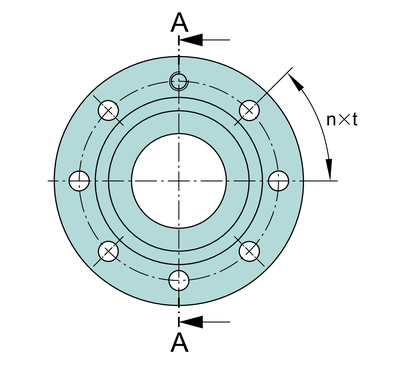

- Pitch circle diameter fixing holes
- 80.0 mm
- Pitch quantity of fixing holes
- 8.0
- Pitch separation angle of fixing holes
- 45.0 °
- Pitch separation angle of holes in adjacent construction
- 45.0 °
- Position tolerance of bore in the housing
- 0.2 mm
- REACH
- REACH_YES_597-82-0!
- Recommended INA precision locknut for axial locking
- AM30
- Recommended INA precision locknut for radial locking
- ZMA30/52
- Required locknut force axial
- 19509.0 N
- Rib diameter inner ring
- 51.0 mm
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Thermally safe operating speed
- 2100.0 1/min
- Tightening torque for the recommended INA precision locknut
- 65.0 Nm
- Width lower tolerance
- -0.5 mm
- Width of extraction slot
- 3.0 mm
- Width upper tolerance
- 0.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Axial-super Precision Bearings › Axial-angular Contact Ball Bearings For Screw Drives
- eCl@ss class
- 23-05-10-02
- UNSPSC
- 31171507
Description
Axial angular contact ball bearings ZKLF..-2RS-2AP-XL, matched pair, double direction, lip seals on both sides
INA
ZKLF30100-2RS-2AP-XL
Common designation: ZKLF30100 2RS 2AP
Axial angular contact ball bearing
⌀30 × 100 × 76 mm
od EUR 1,744.42net
+ VAT 23% = EUR 2,145.64 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZKLF30100-2RS-2AP-XL—
EUR 1,744.42
Cheaper in larger quantities
| from 5 pcs | EUR 1,674.64 | −4% |
| from 10 pcs | EUR 1,657.20 | −5% |
| from 25 pcs | EUR 1,622.31 | −7% |
| from 50 pcs | EUR 1,587.42 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)ZKLF30100-2RS-2AP-XL#N1
EAN4012802078718
Wymiary⌀30 × 100 × 76 mm
Masa3.37 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
