Description

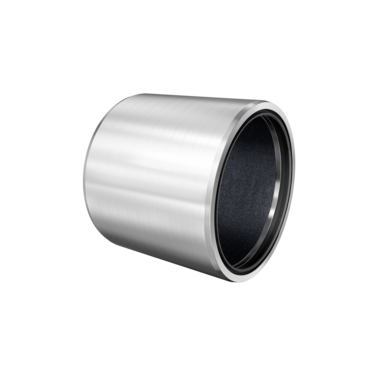

ELGOGLIDE plain bush, maintenance-free, DIN ISO 4379
INA
ZGB30X36X30-B
Bush
⌀30 × 36 × 30 mm
od EUR 82.68z VAT
netto EUR 67.22 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ZGB30X36X30-B—
EUR 82.68
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ZGB30X36X30-B#N1
EAN4012802539806
Wymiary⌀30 × 36 × 30 mm
Masa62.36 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Bush
- Part number (SKU)
- ZGB30X36X30-B#N1
- EAN
- 4012802539806

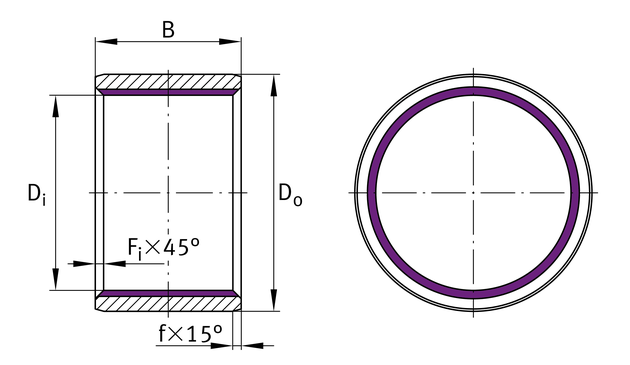

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 36 mm
- Width B
- 30 mm
- Mass
- 62.36 g
Load ratings and operation
- Dynamic load rating C
- 270000 N
- Static load rating C₀
- 270000 N
- Sealing
- Without
Full manufacturer specification28 parameters · expand
- Chamfer angle bore diameter
- 45.0 °
- Chamfer angle outside diameter
- 15.0 °
- Fabric
- ELGOGLIDE
- Inner diameter, lower tolerance
- 0.0 mm
- Inner diameter, tolerance
- H8
- Inner diameter, upper tolerance
- 0.033 mm
- Inner edge break
- 0.4 mm
- Inner edge break, lower tolerance
- -0.2 mm
- Inner edge break, max.
- 0.6 mm
- Inner edge break, min.
- 0.2 mm
- Inner edge break, upper tolerance
- 0.2 mm
- Maintenance
- Maintenance free
- Material back
- Steel
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -50.0 °C
- Outer chamfer
- 1.5 mm
- Outer chamfer, lower tolerance
- -0.5 mm
- Outer chamfer, upper tolerance
- 0.5 mm
- Outer diameter, tolerance
- p7
- Outside diameter, lower tolerance
- 0.026 mm
- Outside diameter, upper tolerance
- 0.051 mm
- PFAS
- ja
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Seal
- Without
- Width tolerance
- h12
- Width, lower tolerance
- -0.21 mm
- Width, upper tolerance
- 0.0 mm
