Technical data
53 parametersIdentification
- Manufacturer
- INA
- Type
- Axial/radial roller bearing
- Part number (SKU)
- YRTSM325-C#N1
- EAN
- 4054366871787

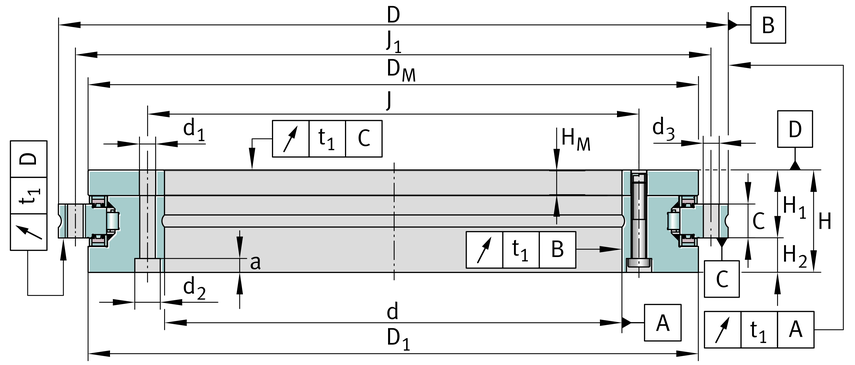

Dimensions
- Bore d
- 325 mm
- Outside diameter D
- 450 mm
- Mass
- 27.00 kg
Load ratings and operation
- Dynamic load rating C
- 109000 N
- Static load rating C₀
- 320000 N
- Limiting speed
- 760 1/min
Full manufacturer specification43 parameters · expand
- Angular measuring system integrated
- M
- Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
- 6.0 µm
- Axial rigidity of bearing position
- 11900.0 N/µm
- Axial rigidity of rolling element set
- 19900.0 N/µm
- Basic dynamic load rating, axial
- 191000.0 N
- Basic static load rating, axial
- 1260000.0 N
- Bore diameter lower tolerance
- -0.023 mm
- Bore diameter upper tolerance
- 0.0 mm

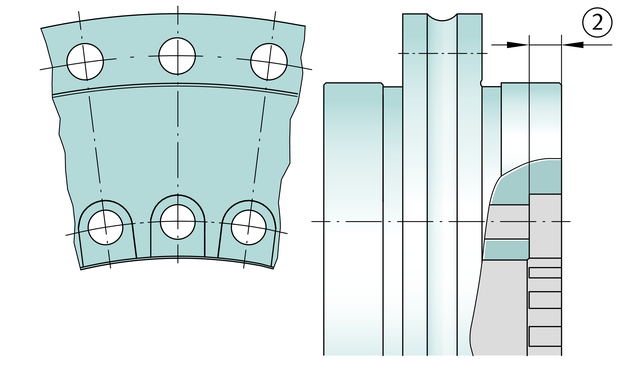

- Counterbore depth of fixing holes
- 8.2 mm
- Counterbore diameter of fixing holes
- 15.0 mm
- Diameter of dimensional scale on shaft locating washer
- 412.45 mm
- Fixing holes diameter inner ring
- 9.3 mm
- Fixing holes diameter outer ring
- 9.3 mm
- Height
- 60.0 mm
- Height contact face outer ring
- 20.0 mm
- Height contact face outerring H1 lower tolerance
- -0.07 mm
- Height contact face outerring H1 upper tolerance
- 0.06 mm
- Height shaft washer
- 15.0 mm
- Mass moment of inertia for rotating inner ring
- 4506.0 kg*cm²
- Mass moment of inertia for rotating outer ring
- 2489.0 kg*cm²
- Max. operating temperature
- 120.0 °C
- Maximum diameter inner ring
- 415.1 mm
- Min. operating temperature
- -30.0 °C
- Outside diameter lower tolerance
- -0.023 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- no

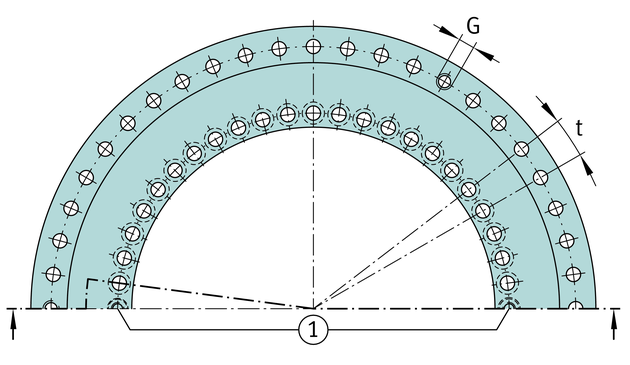

- Pitch circle diameter fixing holes in inner ring
- 342.0 mm
- Pitch circle diameter fixing holes in outer ring
- 430.0 mm
- Pitch quantity
- 36.0
- Pitch separation angle
- 10.0 °
- Quantity of fixing holes inner ring
- 34.0
- Quantity of fixing holes outer ring
- 33.0
- Quantity of retaining screws
- 2.0
- Quantity of threaded extraction hole
- 3.0
- Radial rigidity of bearing position
- 7200.0 N/µm
- Radial rigidity of rolling element set
- 7100.0 N/µm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Screw tightening torque
- 34.0 Nm
- Threaded extraction hole
- M12
- Tilting rigidity of bearing position
- 207000.0 Nm/mrad
- Tilting rigidity of rolling element set
- 350000.0 Nm/mrad
- Width of outer ring
- 20.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Combined Axial-, Radial-Super Precision Bearings › Bearings for Rotary Tables
- eCl@ss class
- 23-05-12-04
- UNSPSC
- 31171505
Description

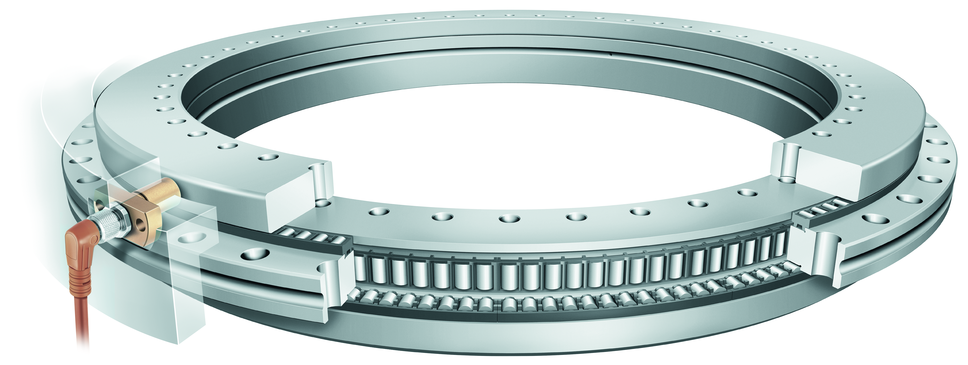

Axial/radial bearings, double direction, screw mounting, for higher speeds, with integrated angular measuring system
INA
YRTSM325-C
Axial/radial roller bearing
⌀325 × 450 mm
od EUR 10,630.43net
+ VAT 23% = EUR 13,075.43 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
YRTSM325-C—
EUR 10,630.43
Cheaper in larger quantities
| from 5 pcs | EUR 10,205.21 | −4% |
| from 10 pcs | EUR 10,098.90 | −5% |
| from 25 pcs | EUR 9,886.30 | −7% |
| from 50 pcs | EUR 9,673.69 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)YRTSM325-C#N1
EAN4054366871787
Wymiary⌀325 × 450 mm
Masa27.00 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
