Description
Axial/radial bearings, double direction, screw mounting, with integrated angular measuring system
INA
YRTCM325-XL
Axial/radial roller bearing
⌀325 × 450 mm
od EUR 11,968.15z VAT
netto EUR 9,730.20 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
YRTCM325-XL—
EUR 11,968.15
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)YRTCM325-XL#N1
EAN4054371261702
Wymiary⌀325 × 450 mm
Masa24.46 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Axial/radial roller bearing
- Part number (SKU)
- YRTCM325-XL#N1
- EAN
- 4054371261702

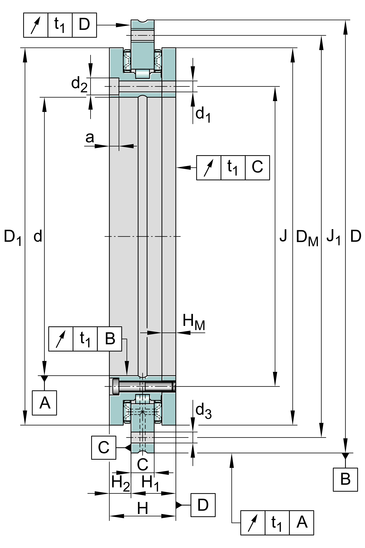

Dimensions
- Bore d
- 325 mm
- Outside diameter D
- 450 mm
- Mass
- 24.46 kg
Load ratings and operation
- Dynamic load rating C
- 183000 N
- Static load rating C₀
- 530000 N
- Limiting speed
- 200 1/min
Full manufacturer specification44 parameters · expand
- Angular measuring system integrated
- M
- Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
- 6.0 µm
- Axial rigidity of bearing position
- 14200.0 N/µm
- Axial rigidity of rolling element set
- 33000.0 N/µm
- Basic dynamic load rating, axial
- 247000.0 N
- Basic static load rating, axial
- 1900000.0 N
- Bearing friction torque at 5 1/min
- 13.0 Nm
- Bore diameter lower tolerance
- -0.023 mm
- Bore diameter upper tolerance
- 0.0 mm

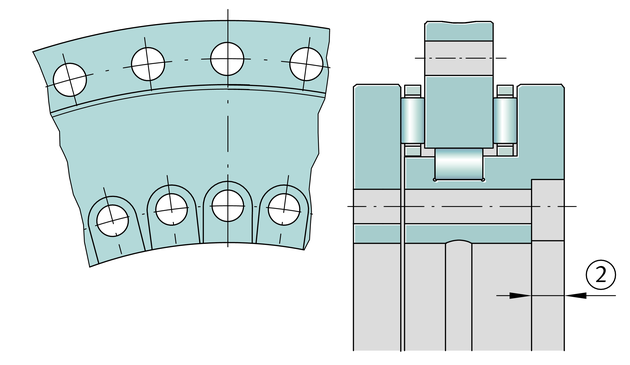

- Counterbore depth of fixing holes
- 8.2 mm
- Counterbore diameter of fixing holes
- 15.0 mm
- Diameter of dimensional scale on shaft locating washer
- 412.45 mm
- Fixing holes diameter inner ring
- 9.3 mm
- Fixing holes diameter outer ring
- 9.3 mm
- Height
- 60.0 mm
- Height contact face outer ring
- 20.0 mm
- Height contact face outerring H1 lower tolerance
- -0.05 mm
- Height contact face outerring H1 upper tolerance
- 0.05 mm
- Height contact face outerring H2 lower tolerance
- -0.025 mm
- Height contact face outerring H2 upper tolerance
- 0.025 mm
- Height shaft washer
- 15.0 mm
- Maximum diameter inner ring
- 415.1 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.023 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitch circle diameter fixing holes in inner ring
- 342.0 mm
- Pitch circle diameter fixing holes in outer ring
- 430.0 mm
- Pitch quantity
- 36.0
- Pitch separation angle
- 10.0 °
- Quantity of fixing holes inner ring
- 34.0
- Quantity of fixing holes outer ring
- 33.0
- Quantity of retaining screws
- 2.0
- Quantity of threaded extraction hole
- 3.0
- Radial rigidity of bearing position
- 8800.0 N/µm
- Radial rigidity of rolling element set
- 9900.0 N/µm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Screw tightening torque
- 34.0 Nm
- Threaded extraction hole
- M12
- Tilting rigidity of bearing position
- 254000.0 Nm/mrad
- Tilting rigidity of rolling element set
- 633000.0 Nm/mrad
- Width of outer ring
- 20.0 mm
