Technical data
53 parametersIdentification
- Manufacturer
- INA
- Type
- Axial/radial roller bearing
- Part number (SKU)
- YRTC950-XL#N1
- EAN
- 4064327527349

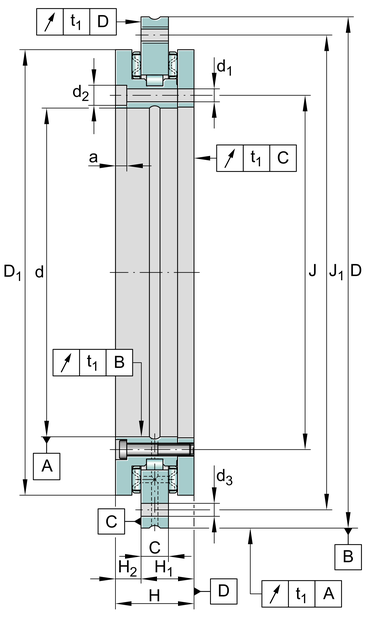

Dimensions
- Bore d
- 950 mm
- Outside diameter D
- 1200 mm
- Mass
- 297.64 kg
Load ratings and operation
- Dynamic load rating C
- 550000 N
- Static load rating C₀
- 1890000 N
- Limiting speed
- 45 1/min
Full manufacturer specification43 parameters · expand
- Angular measuring system integrated
- no
- Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
- 12.0 µm
- Axial rigidity of bearing position
- 61400.0 N/µm
- Axial rigidity of rolling element set
- 72700.0 N/µm
- Basic dynamic load rating, axial
- 1080000.0 N
- Basic static load rating, axial
- 9500000.0 N
- Bearing friction torque at 5 1/min
- 170.0 Nm
- Bore diameter lower tolerance
- -0.05 mm
- Bore diameter upper tolerance
- 0.0 mm
- Category
- XL
- Counterbore depth of fixing holes
- 17.0 mm
- Counterbore diameter of fixing holes
- 26.0 mm
- Fixing holes diameter inner ring
- 18.0 mm
- Fixing holes diameter outer ring
- 18.0 mm
- Height
- 132.0 mm
- Height contact face outer ring
- 46.0 mm
- Height contact face outerring H1 lower tolerance
- -0.3 mm
- Height contact face outerring H1 upper tolerance
- 0.3 mm
- Height contact face outerring H2 lower tolerance
- -0.3 mm
- Height contact face outerring H2 upper tolerance
- 0.3 mm
- Max. operating temperature
- 120.0 °C
- Maximum diameter inner ring
- 1130.0 mm
- Min. operating temperature
- -30.0 °C
- Outside diameter lower tolerance
- -0.063 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- no

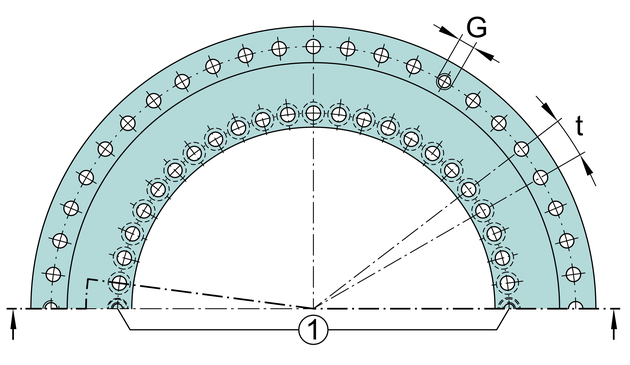

- Pitch circle diameter fixing holes in inner ring
- 990.0 mm
- Pitch circle diameter fixing holes in outer ring
- 1160.0 mm
- Pitch quantity
- 60.0
- Pitch separation angle
- 6.0 °
- Quantity of fixing holes inner ring
- 58.0
- Quantity of fixing holes outer ring
- 54.0
- Quantity of retaining screws
- 2.0
- Quantity of threaded extraction hole
- 6.0
- Radial rigidity of bearing position
- 19000.0 N/µm
- Radial rigidity of rolling element set
- 17900.0 N/µm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Screw tightening torque
- 284.0 Nm
- Threaded extraction hole
- M16
- Tilting rigidity of bearing position
- 4893000.0 Nm/mrad
- Tilting rigidity of rolling element set
- 11494000.0 Nm/mrad
- Width of outer ring
- 40.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Super Precision Bearings › Combined Axial-, Radial-Super Precision Bearings › Bearings for Rotary Tables
- eCl@ss class
- 23-05-12-04
- UNSPSC
- 31171505
Description

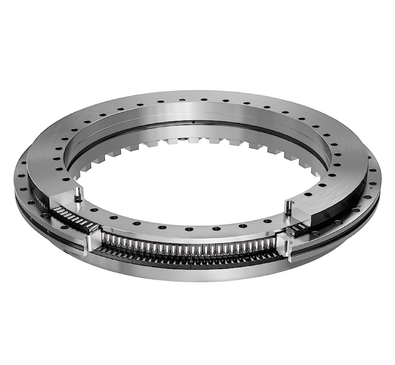

Axial/radial bearings, double direction, for screw mounting
INA
YRTC950-XL
Common designation: YRTC950
Axial/radial roller bearing
⌀950 × 1200 mm
od EUR 73,968.55net
+ VAT 23% = EUR 90,981.32 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
YRTC950-XL—
EUR 73,968.55
Cheaper in larger quantities
| from 5 pcs | EUR 71,009.81 | −4% |
| from 10 pcs | EUR 70,270.13 | −5% |
| from 25 pcs | EUR 68,790.75 | −7% |
| from 50 pcs | EUR 67,311.38 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)YRTC950-XL#N1
EAN4064327527349
Wymiary⌀950 × 1200 mm
Masa297.64 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
