Technical data
38 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, Crossed roller bearing, without gear teeth
- Part number (SKU)
- XU120222#N
- EAN
- 4012802077933
Dimensions
- Mass
- 11.15 kg
Load ratings and operation
- Dynamic load rating C
- 116000 N
- Static load rating C₀
- 305000 N
Full manufacturer specification31 parameters · expand
- Basic dynamic load rating, axial
- 116000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 83000.0 N
- Basic static load rating, axial
- 305000.0 N
- Basic static load rating, radial (for radial load only)
- 149000.0 N

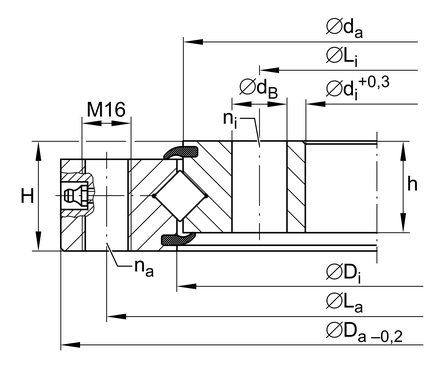

- Bore Diameter
- 140.0 mm
- Bore diameter lower tolerance
- 0.0 mm
- Bore diameter upper tolerance
- 0.3 mm
- Fixing bore
- 18.0 mm
- Height
- 36.0 mm
- Height of inner ring
- 30.0 mm
- Height outer ring
- 30.0 mm
- Inner diameter outer ring
- 224.0 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load screws
- 65500.0 N
- Min. operating temperature
- -30.0 °C
- Normal axial tilting clearance max.
- 0.06 mm
- Normal axial tilting clearance min.
- 0.02 mm
- Normal radial clearance max.
- 0.03 mm
- Normal radial clearance min.
- 0.01 mm
- Number of fixing holes in inner ring
- 12.0
- Number of fixing holes in outer ring
- 12.0
- Outside diameter
- 300.0 mm
- Outside diameter inner ring
- 220.0 mm
- Outside diameter lower tolerance
- -0.2 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- no
- Pitchcircle diameter fixing holes inner ring
- 170.0 mm
- Pitchcircle diameter fixing holes outer ring
- 270.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Tread fixing bore
- M16
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171505
Description

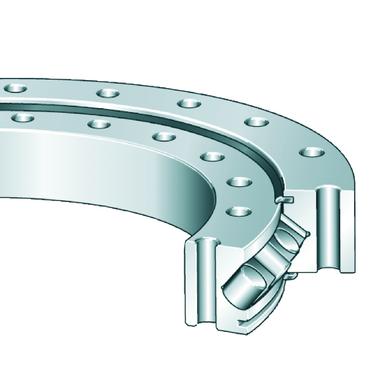

Crossed roller bearings without gear teeth, sealed on both sides
INA
XU120222
Slewing ring, Crossed roller bearing, without gear teeth
od EUR 2,118.57net
+ VAT 23% = EUR 2,605.84 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
XU120222—
EUR 2,118.57
Cheaper in larger quantities
| from 5 pcs | EUR 2,033.82 | −4% |
| from 10 pcs | EUR 2,012.64 | −5% |
| from 25 pcs | EUR 1,970.27 | −7% |
| from 50 pcs | EUR 1,927.90 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)XU120222#N
EAN4012802077933
Masa11.15 kg
