Technical data
38 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, Crossed roller bearing, without gear teeth
- Part number (SKU)
- XSU080258#N1
- EAN
- 4054366217936
Dimensions
- Mass
- 4.85 kg
Load ratings and operation
- Dynamic load rating C
- 83000 N
- Static load rating C₀
- 370000 N
- Limiting speed
- 148 1/min
Full manufacturer specification30 parameters · expand
- Basic dynamic load rating, axial
- 83000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 59000.0 N
- Basic static load rating, axial
- 370000.0 N
- Basic static load rating, radial (for radial load only)
- 181000.0 N

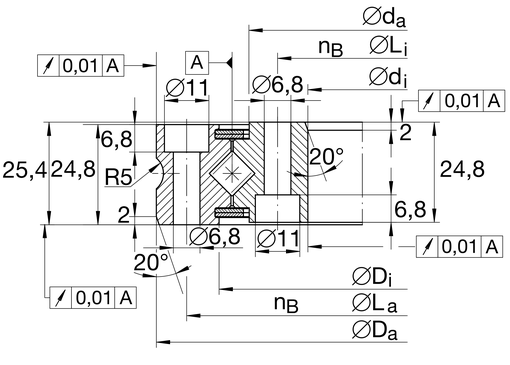

- Bore Diameter
- 220.0 mm
- Bore diameter lower tolerance
- 0.0 mm
- Bore diameter upper tolerance
- 0.029 mm
- Counterbore depth of fixing holes
- 6.8 mm
- Counterbore diameter of fixing holes
- 11.0 mm
- Fixing bore
- 6.8 mm
- Groove radius
- 5.0 mm
- Height
- 25.4 mm
- Height of inner ring
- 24.8 mm
- Height outer ring
- 24.8 mm
- Inner diameter outer ring
- 264.0 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load screws
- 16400.0 N
- Min. operating temperature
- -30.0 °C
- Number of fixing holes in inner ring
- 24.0
- Number of fixing holes in outer ring
- 24.0
- Outside diameter
- 295.0 mm
- Outside diameter inner ring
- 249.0 mm
- Outside diameter lower tolerance
- -0.032 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- no
- Pitchcircle diameter fixing holes inner ring
- 235.0 mm
- Pitchcircle diameter fixing holes outer ring
- 280.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Running accuracy A (related to the raceway)
- 0.01 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171505
Description

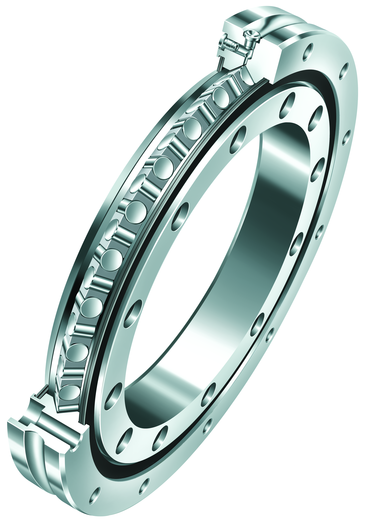

Crossed roller bearings standard series 08, without gear teeth, lamellar seals on both sides
INA
XSU080258
Slewing ring, Crossed roller bearing, without gear teeth
od EUR 2,733.88net
+ VAT 23% = EUR 3,362.67 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
XSU080258—
EUR 2,733.88
Cheaper in larger quantities
| from 5 pcs | EUR 2,624.52 | −4% |
| from 10 pcs | EUR 2,597.18 | −5% |
| from 25 pcs | EUR 2,542.50 | −7% |
| from 50 pcs | EUR 2,487.83 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)XSU080258#N1
EAN4054366217936
Masa4.85 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
