Technical data
47 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, crossed roller bearing, internal gear teeth
- Part number (SKU)
- XSI141094-N#N1>1
- EAN
- 4012802417067
Dimensions
- Mass
- 92.10 kg
Load ratings and operation
- Dynamic load rating C
- 340000 N
- Static load rating C₀
- 1440000 N
Full manufacturer specification40 parameters · expand
- Basic dynamic load rating, axial
- 340000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 241000.0 N
- Basic static load rating, axial
- 1440000.0 N
- Basic static load rating, radial (for radial load only)
- 710000.0 N
- Bore Diameter
- 984.0 mm
- Diameter centring inner ring
- 1091.0 mm
- Diameter centring inner ring tolerance
- -IT7
- Diameter centring outer ring
- 1164.0 mm
- Diameter centring outer ring tolerance
- -IT7
- Fixing bore
- 14.0 mm
- Gearing
- N
- Height
- 56.0 mm
- Inner diameter outer ring
- 1095.0 mm
- Inner diameter outer ring lower tolerance
- 0.0 mm
- Inner diameter outer ring upper tolerance
- 0.7 mm
- Inner ring width
- 44.5 mm
- Length centering inner ring
- 4.5 mm
- Length centering outer ring
- 10.0 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load fixing screws (friction locking)
- 198200.0 N
- Max. tooth force against tooth fracture
- 46700.0 N
- Max. tooth force root fatigue strenght
- 31400.0 N
- Maximum bearing preload
- 0.05 mm
- Min. bearing preload
- 0.01 mm
- Min. operating temperature
- -25.0 °C
- Modul of gearing
- 8.0 mm
- Number of fixing holes in inner ring
- 48.0
- Number of fixing holes in outer ring
- 48.0
- Number of teeth
- 125.0
- Outer ring width
- 44.5 mm
- PFAS
- no
- Pitch circle diameter gearing
- 1000.0 mm
- Pitchcircle diameter fixing holes inner ring
- 1055.0 mm
- Pitchcircle diameter fixing holes outer ring
- 1140.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant
- Running accuracy
- 0.11 mm
- Thread depth oil connector
- 20.0 mm
- Tread fixing bore
- M12
- Width gearing
- 44.5 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171505
Description

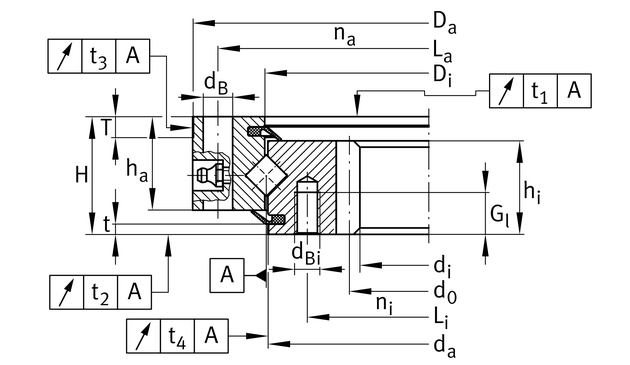

Crossed roller bearings, standard series 14, internal gear teeth, lip seals on both sides
INA
XSI141094-N
Slewing ring, crossed roller bearing, internal gear teeth
od EUR 11,684.37net
+ VAT 23% = EUR 14,371.78 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
XSI141094-N—
EUR 11,684.37
Cheaper in larger quantities
| from 5 pcs | EUR 11,216.99 | −4% |
| from 10 pcs | EUR 11,100.15 | −5% |
| from 25 pcs | EUR 10,866.46 | −7% |
| from 50 pcs | EUR 10,632.77 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)XSI141094-N#N1>1
EAN4012802417067
Masa92.10 kg
