Technical data
50 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, crossed roller bearing, internal gear teeth
- Part number (SKU)
- XSI140414-N#N
- EAN
- 4054365363818
Dimensions
- Mass
- 31.05 kg
Load ratings and operation
- Dynamic load rating C
- 200000 N
- Static load rating C₀
- 540000 N

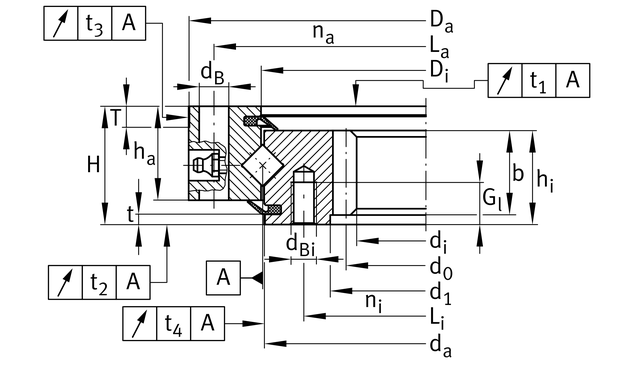

Full manufacturer specification43 parameters · expand
- Basic dynamic load rating, axial
- 200000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 143000.0 N
- Basic static load rating, axial
- 540000.0 N
- Basic static load rating, radial (for radial load only)
- 265000.0 N
- Bore Diameter
- 325.0 mm
- Diameter centring inner ring
- 411.0 mm
- Diameter centring inner ring tolerance
- -IT7
- Diameter centring outer ring
- 484.0 mm
- Diameter centring outer ring tolerance
- -IT7
- Diameter turning inner ring
- 350.0 mm
- Diameter turning inner ring lower tolerance
- 0.0 mm
- Diameter turning inner ring upper tolerance
- 0.5 mm
- Fixing bore
- 14.0 mm
- Gearing
- N
- Height
- 56.0 mm
- Inner diameter outer ring
- 415.0 mm
- Inner diameter outer ring lower tolerance
- 0.0 mm
- Inner diameter outer ring upper tolerance
- 0.5 mm
- Inner ring width
- 44.5 mm
- Length centering inner ring
- 4.5 mm
- Length centering outer ring
- 10.0 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load fixing screws (friction locking)
- 99100.0 N
- Max. tooth force against tooth fracture
- 26200.0 N
- Max. tooth force root fatigue strenght
- 17700.0 N
- Maximum bearing preload
- 0.03 mm
- Min. bearing preload
- 0.01 mm
- Min. operating temperature
- -25.0 °C
- Modul of gearing
- 5.0 mm
- Number of fixing holes in inner ring
- 24.0
- Number of fixing holes in outer ring
- 24.0
- Number of teeth
- 67.0
- Outer ring width
- 44.5 mm
- PFAS
- no
- Pitch circle diameter gearing
- 335.0 mm
- Pitchcircle diameter fixing holes inner ring
- 375.0 mm
- Pitchcircle diameter fixing holes outer ring
- 460.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Running accuracy
- 0.06 mm
- Thread depth oil connector
- 20.0 mm
- Tread fixing bore
- M12
- Width gearing
- 40.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171505
Description
Crossed roller bearings, standard series 14, internal gear teeth, lip seals on both sides
INA
XSI140414-N

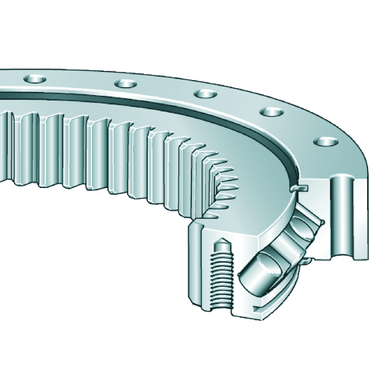

Slewing ring, crossed roller bearing, internal gear teeth
od EUR 4,986.01net
+ VAT 23% = EUR 6,132.79 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
XSI140414-N—
EUR 4,986.01
Cheaper in larger quantities
| from 5 pcs | EUR 4,786.57 | −4% |
| from 10 pcs | EUR 4,736.71 | −5% |
| from 25 pcs | EUR 4,636.99 | −7% |
| from 50 pcs | EUR 4,537.27 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)XSI140414-N#N
EAN4054365363818
Masa31.05 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
