Technical data
40 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, crossed roller bearing, external gear teeth
- Part number (SKU)
- XA120235-N#N
- EAN
- 4047643183703
Dimensions
- Mass
- 13.21 kg
Load ratings and operation
- Dynamic load rating C
- 129000 N
- Static load rating C₀
- 280000 N
Full manufacturer specification33 parameters · expand
- Basic dynamic load rating, axial
- 129000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 92000.0 N
- Basic static load rating, axial
- 280000.0 N
- Basic static load rating, radial (for radial load only)
- 138000.0 N
- Bore Diameter
- 171.0 mm
- Fixing bore
- 13.0 mm
- Gearing
- N
- Height
- 40.0 mm
- Height of individual ring
- 35.0 mm
- Inner diameter outer ring
- 236.0 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load fixing screws (friction locking)
- 53000.0 N
- Max. tooth force against tooth fracture (at a shock factor of 1,35)
- 16100.0 N
- Max. tooth force root fatigue strenght (at a shock factor of 1,2)
- 11000.0 N
- Maximum bearing preload
- 0.02 mm
- Min. bearing preload
- 0.0 mm
- Min. operating temperature
- -30.0 °C
- Modul of gearing
- 4.0 mm
- Number of fixing holes in inner ring
- 12.0
- Number of fixing holes in outer ring
- 12.0
- Number of teeth
- 78.0
- Outer ring width
- 35.0 mm
- Outside diameter
- 318.8 mm
- Outside diameter inner ring
- 234.0 mm
- Outside diameter inner ring lower tolerance
- -0.2 mm
- Outside diameter inner ring upper tolerance
- 0.2 mm
- PFAS
- no
- Pitch circle diameter gearing
- 312.0 mm
- Pitchcircle diameter fixing holes inner ring
- 195.0 mm
- Pitchcircle diameter fixing holes outer ring
- 275.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Width gearing
- 35.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171505
Description

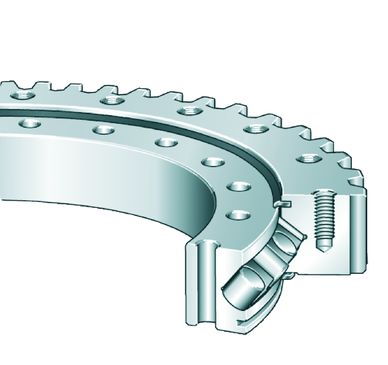

Crossed roller bearings with external gear teeth, sealed
INA
XA120235-N
Slewing ring, crossed roller bearing, external gear teeth
od EUR 4,621.23net
+ VAT 23% = EUR 5,684.11 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
XA120235-N—
EUR 4,621.23
Cheaper in larger quantities
| from 5 pcs | EUR 4,436.38 | −4% |
| from 10 pcs | EUR 4,390.17 | −5% |
| from 25 pcs | EUR 4,297.75 | −7% |
| from 50 pcs | EUR 4,205.32 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)XA120235-N#N
EAN4047643183703
Masa13.21 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
